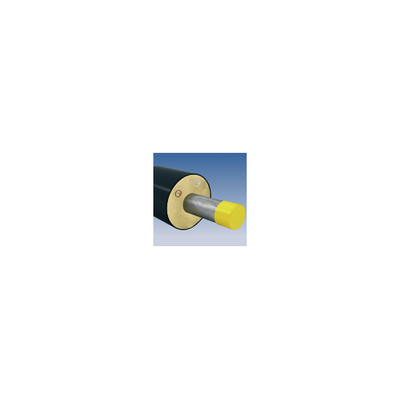

isoplus - Model DISCONTI -Pre-Insulated Single Pipe
isoplus pre-insulated single pipes are produced in discontinuous and continuous production (with diffusion barrier layers). The basic information provided here can vary depending on production methods.
Most popular related searches
insulated single pipe
pre-insulated pipe
rigid connection system
rigid polyurethane foam
monitoring network
- max. permitted op. temp: min. EN 253
- max. permitted op. press.: 25 bar
- standard supply lengths: 6m, 12m, 16m
- available dimensions: DN20-DN1000
- network monitoring: IPS-Cu, IPS-NiCr
* available supply lengths are dependent on the selected dimensions. For further information on this, please refer to our catalogue.
- Medium pipe material: P235GH/TR1/TR2
- Casing pipe material: high-density polyethylene (HDPE)
- Insulation material: polyurethane rigid foam in Standard, 1x or 2x reinforced
