IMKO SONO-Vario Xtrem - Precise Moisture Measurement In Bulk Solids for Measuring Sand and Gravel

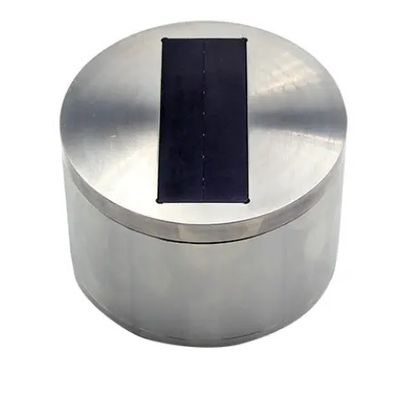

The SONO-Vario Xtrem is suitable for measuring sand and gravel, as well as highly abrasive materials such as coarse gravel or grit. The replaceable probe head is made of hardened steel with a rectangular window made of special ceramic.
Most popular related searches
moisture monitoring
sewage sludge
bulk solids moisture
wood production
bulk solids monitoring
belt conveyor
sewage
wood processing
concrete moisture monitoring
bulk density
- easy commissioning
- pre-installed calibrations
- long-term stability
- high precision
- wear-resistan
- Wood products (processed & solid)
- Sewage sludge >TS70
- Powder & fine bulk goods
- Pasta & Pre-products
- Coffee beans/-powder
- Granules & Low-density bulk solids
- Grain & Animal feed
- Sewage sludge <TS70
- Soil- & Substrate moisture
- Ceramic raw materials
- Sand & Gravel
- Foundry sand
- Fresh concrete
- Mining/Ores
- Temperature range: 0°C ... 70°C
- Power supply: +12V to +24V DC, approx. 3W
- Special conditions: 0°C to +120°C in high temperature version
- Signal output:
- 2 x analogue output 0(4)...20mA
- Output 1: Humidity in %
- Output 2: Temperature
- or optionally conductivity or standard deviation
- Interfaces: RS485 or IMP bus
- Sensor dimension: Ø108 mm x 71 mm (without plug)
- Weight: 2,46 kg
- IP protection class: IP67
- SONO VARIO Xtrem V4A
- SONO VARIO Xtrem Carbid
- SONO ES VARIO Xtrem
Constructive variants
- Rundsensor, kurz
- Rechtecksensor (normal, Hochtemperatur & Ex)
- Stabsensor
- Under the silo flap
- On the dosing belt
- Ejection from the conveyor belt
- For non-adhesive materials in the hopper
