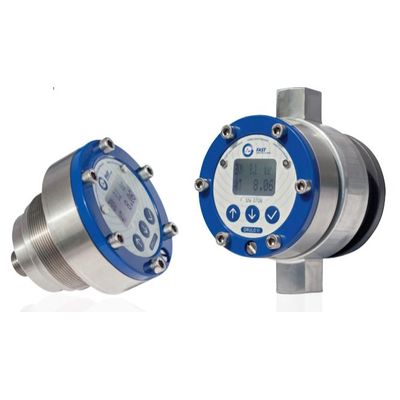

FAST - Model Drulo 3 -Precise Pressure Measurement Data Logger

SHARE

Pressure and temperature measurement with integrated data logger. 1.8 million measurement values can be saved. Measurement interval can be set between 1 s and 24 h. Free updates and app. Bluetooth interface for programming and data read-out. Chargeable lithium accummulator with extremely long lifetime (1 charging cycle = 2.5 million measurement values).

Most popular related searches
water leak monitoring system
water leak detection system
data logger
pressure measurement data logger
leak detection system
water leak detection
pressure monitoring
temperature sensor
water leak
temperature monitoring

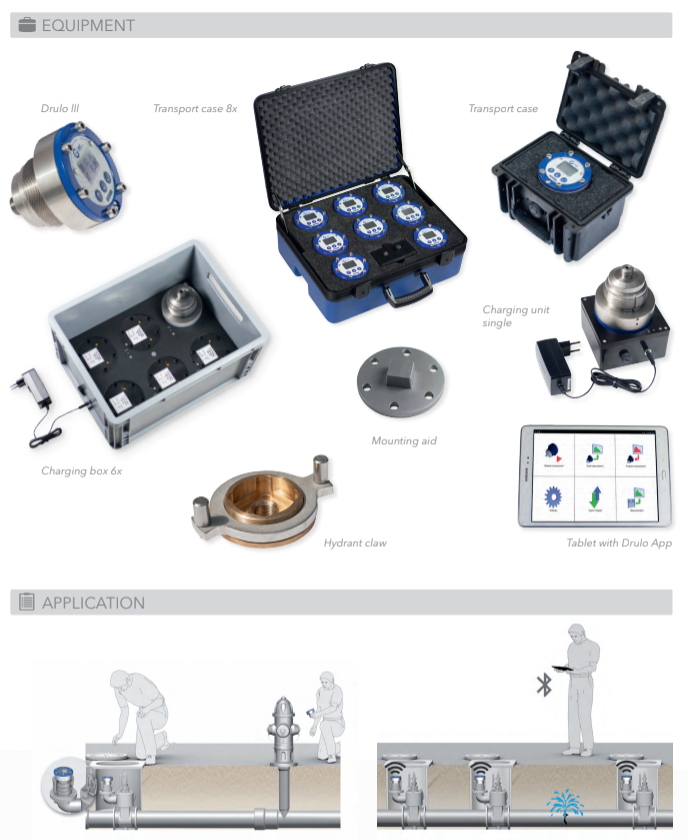

  • Mounting the Drulo lll through ½ inch thread or hydrant clamp
  • Programming via keys on the Drulo or via tablet / smartphone and app
  • Downloading the data to the tablet / smartphone via Bluetooth
  • Displaying the results on the tablet, or data extractable as csv.
  • Saving the data in the Watercloud permanently
  • Pressure ranges:
    • 0 – 20bar
    • Other pressure ranges on inquiry
  • Temperature range:
    • -15 till +40°C measurement range of temperature sensor
    • -20 till +55°C storage and use
  • Accuracy: +/- 0.1% FS
  • Resolution: +/- 0.005 % FS, e.g. 1 mbar for the 20bar range
  • Measurement intervals: adjustable from 1 seconds up to 24 hours 10 values per second for event control measurement
  • Real time clock:
    • Accurate quartz measurement indicating the time and the date.
    • Time for beginning data sampling is adjustable
  • Memory capacity:
    • 1.800.000 values for only pressure data
    • 1.200.000 values for pressure and temperature
  • Type of memory: non manipulatable FLASH memory, measurement-related data remain saved even in case of battery failure.
  • Interface:
    • Bluetooth, Measurement data can be downloaded even during a measurement event.
    • Programming through Tablet or Membrane keys (Display)
  • Identification: each logger has an individual serial number
  • Display: LCD with graphics capability 102x64 Pixels
  • Measuring sensor: long-term, piezo electronic sensor, with integrated temperature sensor, temperature-compensated
  • Power supply: Lithium accumulator 3.7 V / 2.6 Ah, chargeable through charging station (single or 6-fold charging station), One charging cycle last for 2.5Mio measurement values
  • Materials: aluminium case, parts in contact with medium are made of stainless steel.
  • Protection class: IP 68
  • Connection: ½ inch standard thread, DIN-Hydrant claw, glued or removable.
  • Dimensions: Housing Ø = 98mm, Height = 100mm (105mm with screws)
