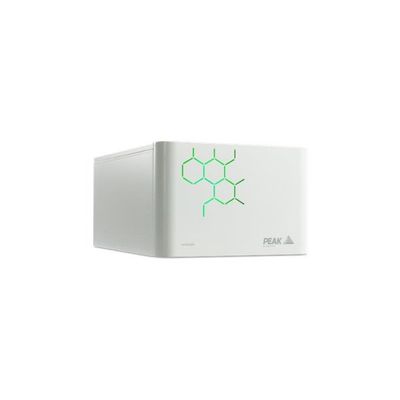

Peak Scientific - Model 250 - N2 -Precision Nitrogen Headspace Gas Generators
The Precision Nitrogen Headspace 250 has been conceived and custom-engineered to meet the gas requirements for Headspace Sampler instruments requiring higher gas pressure. Producing a renewable supply of Ultra High Purity Nitrogen, Peak`s Nitrogen Headspace 250 is also capable of supplying UHP Nitrogen make-up gas. The Nitrogen Headspace 250 augments Peak Scientific`s existing Precision Series of gas generators, which offer a modular system providing a complete GC gas solution specific to your laboratory needs. Its stackable space-saving design allows you to configure a stack tailored to deliver precisely the mix of gasses you require and make the most of your valuable lab floor or benchtop space.
- Ultra High Purity nitrogen for Headspace Sampler instruments
- Can supply make-up gas
- Single unit can stack with the Precision Hydrogen, Nitrogen and Zero Air generators
- Service & repair status indicators
- 12 month comprehensive on-site warranty
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 250cc/min
- Max Output Pressure: 100psi/6.9bar
- Max Purity: 99.9995%
Site & installation
- Min Inlet Pressure: 100psi/6.9bar
- Max Inlet Pressure: 120psi/8.3bar
- Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1 or Precision Air Compressor
- Start Up Time: 90 mins
- Voltage: 110-230 ±10% V
- Frequency: 50 / 60 Hz
- Current: 0.2 - 0.4 A
- Heat Output: 328 BTU/Hr
- Max Operating Temp: 35°C / 95°F
- Accreditations: CE
Dimensions & weight
- Size (HxWxD) mm: 256 x 380 x 540 mm
- Size (HxWxD) Inches: 10.1 x 15 x 21.3 inches
- Generator Weight: 38kg / 83.6lbs
Service requirements
- Annual replacement of particulate filters
