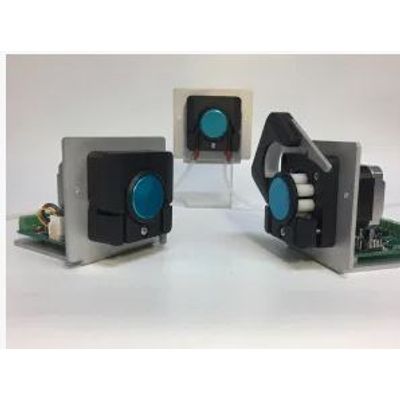

Bio-Chem - Model PE-WX14 -Precision Peristaltic Pumps

Roller Assembly Specifications

• Choice of 4 or 8 rollers
• Delrin roller assy
• Delrin occlusion plate plus dampener
• One lever tube loading

Tubing  Specifications

• ID 0.5 mm I.D – ≤3.17mm and  wall thickness 0.8mm-1.0mm
• Silicone or Pharmed BPT
• Accepts bridge tubing with 93mm spacing or continuous tubing with Slip-on Stops

Driver /Controller Capabilities

• Fixed or variable rpm speed settings
• External control of start/stop and pump direction
• Driver board voltage: 0-5V or 0-10V

Motor

• Speed: ≤60rpm
• Speed resolution: 0.1rpm
• Operate clockwise or counter clockwise direction
• Power supply: DC11.4V-25.2V/10W
• Continuous speed
• Quick wire terminal slots for operational control

Certifications

• CE
• RoHS

Size, Mounting & Operating Conditions

• Universal mount allows for panel or internal bracketing
• Dimension (LxWxH): 107mm X 60mm X 80mm
• Relative humidity: <80% & no condensation
• Operating temperature: 0 to 40°C
• Weight: 0.47 kg (1.02 lbs.)
• Quiet operation
