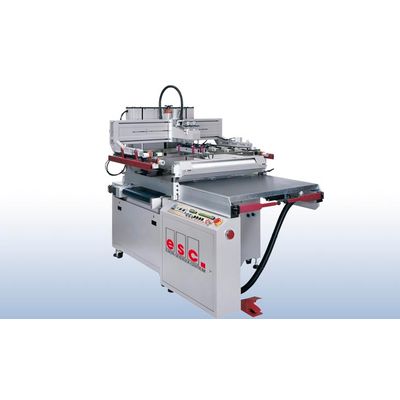

ESC - Model 80 PP/G -Precision Screen Printing

• three-quarter automatic screen printing machine with movable metal vacuum table plate
• comfortable PLC control system with LED display to indicate operating status
• electromechanical drive and vertical motorical screen frame lift with synchronize mechanism
• single operating for setting-up
• adjustable pre-vacuum and print vacuum with programmable blow-back system
• precision positioning at high speed levels by means of wear resisting guidance of vacuum plate
• infinitely and separately variable squeegee and flood coater speed adjustable via potentiometer and pneumatically adjustable pressure
• neutral position for squeegee and flood coater
• automatic stroke operated by timer
• extremely short set-up times by means of pneumatic screen frame locking and squeegee snap closures
• infinitely variable printing stroke via limit switch
• adjustable inclination angle, readable by scale
• pneumatic locking of the master frame
• pneumatic maintenance unit

• material take-off (right or left) with infinitely variable exit speed programmable gripper system with automatic adaptation
• to different material thicknesses up to 6 mm
• cleaning station
• anti-static system

Model : AT-80PP

• vacuum table: 700 x 1000 mm
• vacuum area : 600 x 750 mm
• max. printing size : 600 x 750 mm
• max. frame size (external): 900 x 1100 mm
• max. substrate thickness: 25 mm
• working height: 960 mm
• frame lift: 300 mm
• adjustable printing speed: 0 - 835 mm/sec
• max. cycling speed: 650 p/h

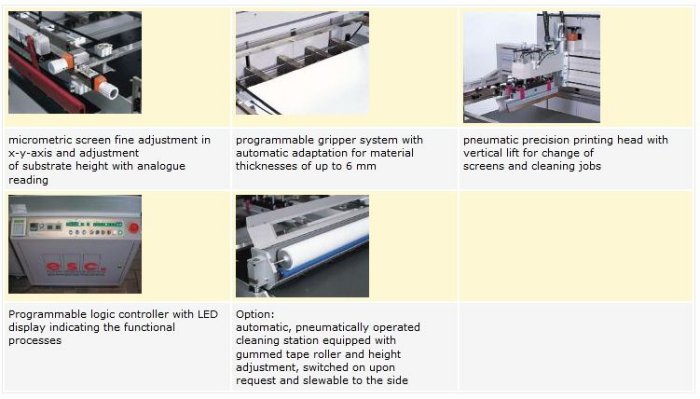

• micrometric screen fine adjustment x-y : ±10 mm
• mains supply: 400 / 50/60 V/Hz
• working pressure: 6 bar
• dimensions: (l x w x h)
• : 1500 x 2100 x 1650 mm
• weight: ca 750 kg
