Micro-Mesh - Precision Sieves

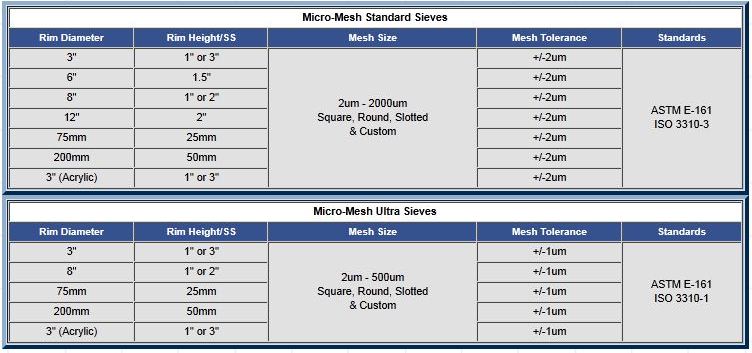

Micro-Mesh electroformed, precision sieves can help ensure product quality in both laboratory and manufacturing applications. Micro-Mesh sieves are used to sort, sift, screen and classify a variety of materials to determine particle size and shape. The flat, smooth surface of the Micro-Mesh sieve simplifies cleaning and minimizes clogging and particulate entrapment. Micro-Mesh sieves are precise instruments custom-produced from electroformed mesh material and assembled in a variety of standard diameter frames. The nickel Micro-Mesh sieves are available in square, round, slotted and custom apertures, approximately .001` thick, with mesh sizes starting from 2 microns. The sieve mesh can be supported or unsupported. The stainless steel support grid is available in 2.5 lines per inch, 5 lines per inch, and 14 lines per inch configurations.
Support Grid Recommendations
- If > 1000 micron, 2.5 lines per inch grid
- If > 20 micron but < 1000 micron, 5 lines per inch grid
- If < 20 microns, 14 lines per inch grid
Accessories
As sieves are often used for sequential particle sizing, Micro-Mesh sieves are available with matching pans, covers, and nesting pans for complete classification systems. These accessories are made from stainless steel, as are the sieve frames. Pans and covers are offered as a set, while nesting pans are offered separately.
Certifications
Micro-Mesh sieves comply with ISO specifications 3310-3 and 3310-1 and ASTM specifications E-161-00. Each sieve is measured at 108 random locations using automated optical measuring equipment and comes with a complete detailed analysis and certificate of compliance.
Need Custom Sieve Material?
Micro-Mesh sieve material can be provided unmounted in sheets from 3" square up to 22" square. Custom produced from 3 micron to 2000 micron in single micron increments in square, round, slotted and hexagonal apertures. Micro-Mesh sieve material is made from nickel under the same specifications mentioned above. Unmounted sieve materials come with a 5 lines per inch support grid, unless otherwise specified.
