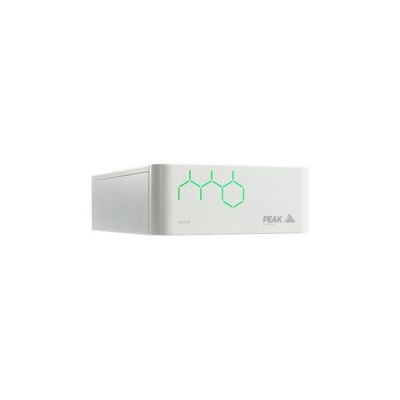

Peak Scientific - Model 3.5L -Precision Zero Air Gas Generator

FromPEAK Scientific Instruments Ltd

SHARE

The Precision Zero Air generators are designed specifically to supply clean, dry, hydrocarbon-free air to be used as flame support gas for GC. As with all Precision Series generators, Zero Air benefits from a compact and modular, stackable design, minimizing the total footprint required for GC gas supply, and providing flexibility to add or remove modules as your laboratory requirements evolve over time.

Most popular related searches

precision zero air

zero air generator

precision zero air gas generator

particulate filter

zero gas generator

filter integrity

Integrates seamlessly with other Precision units
Hydrocarbon content (as Methane) < 0.05ppm for market leading purity
Minimum lifetime maintenance requirements, no expensive catalyst chamber replacements
Avoid risk of contaminants entering the system (when switching out empty cylinders)
No risk of running out of gas in middle of analysis
Compatible with Precision Air
Compressor Status indicative lighting feature (amber warm-up, green ready)
12 month comprehensive on-site warranty

Gas

Gas Type: Air
Min Gas Flow: 0L/min
Max Gas Flow: 3.5L/min
Hydrocarbon Content: <0.05ppm
Max Output Pressure: 80psi/5.5bar

Site & installation

Gas Outlets Fitting: 1 x 1/4" BSPP
Min Inlet Pressure: 90psi/6.2bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: 3.5 L/min
Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1 or Precision Air Compressor
Start Up Time: 60 Minutes
Voltage: 110 / 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 1 - 2 A
Heat Output: 785
Max Operating Temp: 35°C / 95°F
Accreditations: CE, CSA

Dimensions & weight

Size (HxWxD) mm: 156 x 380 x 540 mm
Size (HxWxD) Inches: 6.1 x 15 x 21.3 inches
Generator Weight: 16kg / 35.2lbs

Service requirements

Annual replacement of particulate filters
