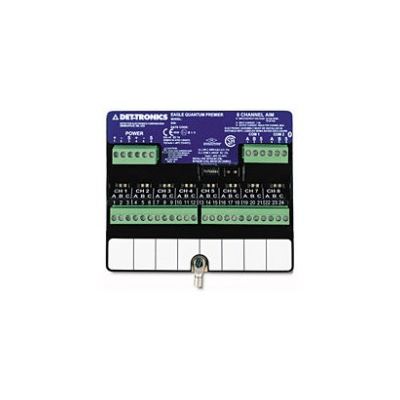

Eagle Quantum - Model EQ3710AIM -Premier 8 Channel Analog Input Module (AIM)

The EQ3710AIM allows input of up to eight 4-20 mA devices. Each channel is fully configurable to provide device and alarm information. This information includes tag name, descriptor, engineering units, fault alarm, Low/High alarm, and alarm threshold limits.

Each channel has individual status indication and inhibit control. This feature inhibits the low and high alarms, thus allowing maintenance procedures to be performed.

Led Indicators

LEDs on the front panel of the module are provided for indicating device status conditions. The LED’s are tested upon power-up to verify their operation. Red LEDs indicate an active alarm condition (blinking red indicates a low alarm is active and a steady red indicates a high alarm is active). Yellow LEDs indicate a trouble condition (blinking yellow indicates a low power or unconfigured condition, and steady yellow indicates that an out of range low or high fault is present).

Mounting

The Analog Input Module is DIN rail or direct panel mountable for configurations requiring installation in NEMA or IP enclosures. DIN rail and mounting clip options must be specified at the time of order. Refer to the “Specifications” section for mounting arrangements and dimensions.

• Expands the capabilities of the Det-Tronics Eagle Quantum Premier™ system
• Monitors eight independent analog channels
• Individual channels are configurable as combustible gas sensor or universal sensor
• Individual channels can be inhibited
• Individual channel LEDs indicate Active and Fault status
• Provides remote input capabilities via LON/SLC
• Panel or DIN rail mounting
• Power LED display
• Plug-in wiring connectors
• RFI and EMI hardened (CE Marked)
• FM/CSA/CENELEC/CE approved
