Eagle Quantum - Model EQ2200IDC -Premier Initiating Device Circuit

Functioning as part of the fire detection portion of the safety system, the EQ2200IDC Initiating Device Circuit (IDC) provides two supervised digital inputs for use with dry contact inputs from devices such as relays, pushbuttons, key switches, etc. The IDC supports ANSI/NFPA 72 Class B Style B supervised input circuits. Each circuit uses its own end of line (EOL) resistor for monitoring circuit continuity.

The output of the IDC is a status message that is sent along the communication loop to the controller. System response to the message is determined at the time of configuration. The IDC supports ANSI/NFPA 72 Class A, Style 7 communication with the controller.

Alarm Log

The IDC logs time, date, and circuit number each time one of its input circuits is activated. Data for the last eight events is stored in non-volatile memory.

Status Leds
Three LEDs are located at the center of the communication module circuit board and are visible through the window on the cover.

The green LED serves as a power-on indicator and is the only LED illuminated during normal operation (no faults or alarms occurring).

The red LED is used to indicate an alarm or fault condition. The flashing rate of the red LED indicates the following conditions:

On steady = one of the inputs is active
Blinking = fault condition such as an open input
circuit or not configured.

The amber LED is provided for factory diagnostic purposes and is not used by the customer. Illumination of the amber LED normally indicates a failure in the communication chip. Replacement of the communication module circuit board is required.

Addressability
Device identification is accomplished by setting switches on an eight position DIP switch (valid address range is 5 to 250).

Enclosure

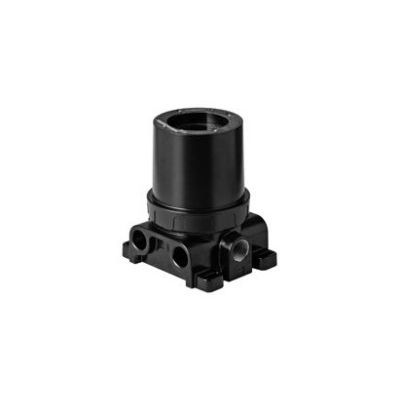

The explosion-proof, water-tight NEMA/Type 4X enclosure is designed for use in a variety of hazardous locations.

Terminal Wiring Board
All external wiring is connected to screw terminal connectors on the terminal wiring board located inside the junction box.

• Two Class B Style B supervised digital inputs.
• Field addressable.
• Unique patented fault isolation.
• Non-volatile memory for configuration and alarm logs.
• Utilizes state-of-the-art communication technology.
• Pass through communication circuitry on power loss.
• EMI hardened.
• FMR, CSA, CENELEC and CE Mark Certifications.
• FMR performance verified per ANSI/NFPA 72-1996.
• Compatible with Eagle Quantum Premier and Eagle Quantum systems.
