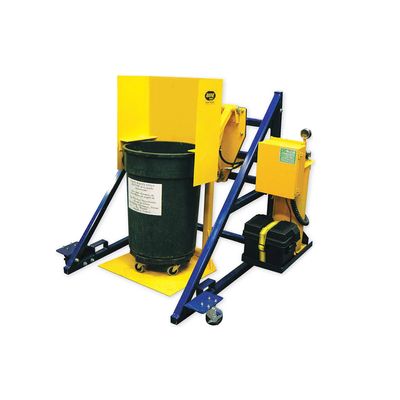

Bayne - Model C/I Food Services Series -Premium Lift Systems
The Food Services series from Bayne Premium Lift Systems are the perfect lifting solution for supermarkets, restaurants, cafeterias, bakeries, commercial kitchens, and more. These food service units make short order of waste disposal. Sized to fit typical food waste containers, our Food Services cart lifters, or cart tippers, are also equipped with a chute to prevent trash spillage, Food service units can be moveable or fixed, and include a fork pocket for easy transport. These lifters help to minimize the risk of back injury and enhance worker safety.
Most popular related searches
food waste container
waste containment
waste container
waste container lifting
self-lubricating-bearing
food waste
hydraulic cart lifter
welded cylinder
cart tipper
workplace safety
- Compatible with typical food service type waste containers
- 230/460 volt 3-phase AC, 110/220 volt 1-phase AC and 12 volt DC self-contained
- hydraulic power units available
- Cycle times as low as 12 seconds
- Welded cylinder with replaceable seals
- Self-lubricating composite bearings at main pivot points
- Powder coated finish for durability
- 1-Year Limited Warranty
- Cart Compatibility: Food service type round/rectangular waste containers
- Lift Capacity: 500 lbs. @ 2000 psi
- Voltage (60 Hz): 230/460 volt 3-phase AC 110/220 volt 1-phase AC 12 volt DC
- Hydraulic Pressure: 2500 psi maximum
- Hydraulic Flow: 1.8 gpm
- Cycle Time: 12 seconds
- Bearings: Self-Lubricating Composite Material
- Finish: Safety Yellow Powder Coating
