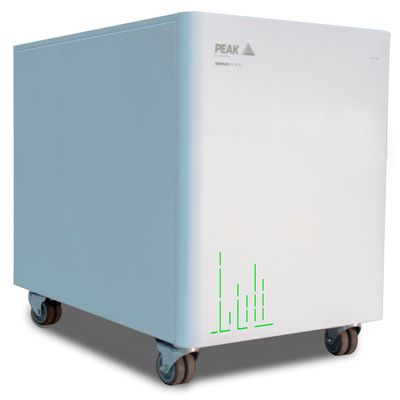

Genius - Model XE QSD -Premium Standalone Nitrogen Analyzer
Combining advanced technology with refined and robust engineering, Genius XE QSD provides a premium standalone nitrogen solution custom designed to meet the requirements of PerkinElmer QSight Dual Source LC-MS. Featuring dual outlets (1 x nitrogen, 1 x air), the generator is precision engineered to reduce size as well as noise and heat emissions. Genius XE QSD has been tested and validated by PerkinElmer for use with their QSight Dual Source LC-MS and comes with factory pre-set pressures and flows to meet the exact demands of the system.
Most popular related searches
- Factory pre-set pressures and flows to meet exact demands of PE QSight Dual Source Systems
- Multi- Stage Drying Filtration to efficiently remove moisture and contaminants, providing a consistent quality of gas
- Low impact on lab environment with low noise and heat emissions
- Next-generation high performance premium compressors, engineered exclusively for Genius XE
- Intuitive LED Service Indication
ECO (Electronic Compressor Optimisation™) technology for low energy consumption and compressor durability - Fixed annual maintenance schedule 1 year comprehensive manufacturer’s warranty
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 16L/min
- Max Output Pressure: 80psi/5.5barGas Type: Air
- Max Gas Flow: 67L/min
- Max Output Pressure: 110psi/7.58bar
Site & installation
- Power Consumption: 1.64 kVA
- Voltage: 220 - 240v ±10% 50/60 Hz
- Max Operating Temp: 30°C / 86°F
- Particles: <0.01µm
- Phthalates: Phthalate & BHT Free
- Noise Level: 57dB(A) @ 1m
- Accreditations: CE, FCC, CSA
Dimensions & weight
- Size (HxWxD) mm: 700 x 570 x 897 mm
- Size (HxWxD) Inches: 27.6 x 22.4 x 35.3 inches
- Generator Weight: 153kg / 336.6lbs
