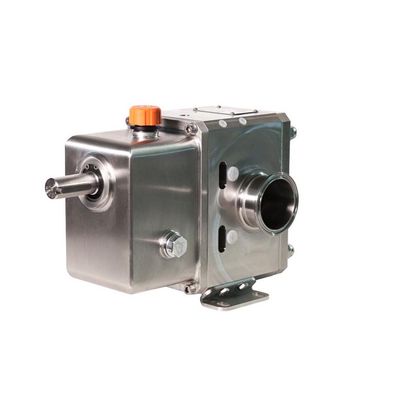

IPP - Premiumlobe Rotary Lobe Pump
The Premiumlobe rotary lobe pump offers a robust and versatile solution that supports a wide range of industrial applications, meeting stringent hygiene standards. With a capacity of up to 163 m3/h and differential pressures ranging from 15 to 80 bar, it is engineered with contactless running elements, ensuring no abrasion or contamination with hygienic liquids. The pump is built using high-grade materials, including 1.4404 stainless steel, and is compliant with EHEDG standards and suitable for ATEX Zone 1/21 environments. The innovative gearbox allows for higher efficiency, encompassing shafts with minimal overhang and large diameter bearings, thus enhancing lifespan and reliability at high pressures. The pump also facilitates CIP and SIP procedures, maintaining hygiene with effective self-cleaning and minimal lifecycle costs. It adapts to various sectors such as biotechnology, pharmaceuticals, food, and cosmetics efficiently, thanks to its modular structure that supports different sealing systems.
ipp premiumlobe rotary lobe pump the individual customer solution
The Premiumlobe offers the ideal conditions for use in sophisticated processes. Due to a conclusive concept for hygienic and non-hygienic applications it is a synthesis of highest technical know-how and practical feasibility.
The contactless running of the pump elements in rotary lobe pumps opens up important perspectives: On one hand it is perfect for hygienic applications due to the complete elimination of abrasion and product contamination; on the other hand the pump elements are wear-free with clean liquids.
An innovative design of the gearbox and the shaft configuration is part of our mission in order to improve significantly the performance of the PREMIUMLOBE compared to other pumps, mainly conventionally designed: Shafts with an extremely short shaft overhang and large diameters for maximum stiffness; preferably large bearings with high capacity in order to increase service life and reliability and to allow high pressures; selection of material with preferably low coefficient for thermal expansion in order to reduce temperature shock sensibility.
Surfaces and materials
- 1.4404 standard (equal AISI 316L) for wetted metallic material
- 1.4435, 1.4539 and 1.4462 optionally (lowest delta-ferrit contents).
- Raw material always high quality rolled steel. No use of cast iron parts due to danger of porosity
- Special "cold" welding procedures are standard.
- Electro polishing and any surface harshness up to Ra<0,4 µm are available.
Premiumlobe Ultra-Hygienic Design
- Front-loaded Seal Design
- Capacities upto 163 m3/h
- Differential pressure of 15 up to max. 80 bar
- Wetted components in 1.4404
- optional 1.4435, 1.4539, 1.4462 and Hastelloy
- CIP- and SIP-cleaning procedures are possible without any restriction
- In compliance with EHEDG
- ATEX Zone 1 / 21
