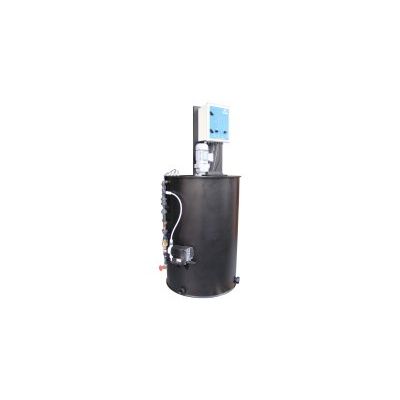

Colberge - Model Lsmaker Series -Preparation System

Continuous emulsion polyelectrolyte preparation system, fully automated, constructed in high density polyethylene (offering a good level of resistance in aggressive environments), allowing a high quality end product to be achieved.

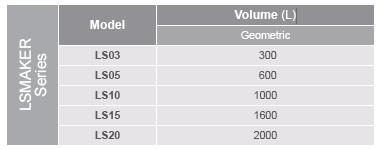

The five models range from 300 to 2000 liters of capacity with concentrations of preparation according to the dosing pump applied.

• The water flow system with regulation and the dosing pump with dosage adjustment allow continuous preparation of variable concentrate solutions.
• Ideal for emulsion polyelectrolyte preparation.
• Each system consists in a tank with two separate volumes by a flat half-moon section, constructed from high density polyethylene.
• The level probe controls the entry of water through the electrovalve in the chamber of dilution, when the minimum level of water is reached. When the maximum level is reached the level probe rises up and the electrovalve cuts the water flow. The solution is concentrated in the lower compartment and through the turmoil of the propellers, moves up to higher levels.

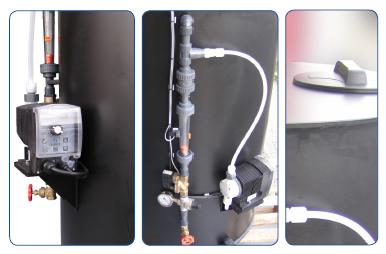

• The rotameter and valve adjustment, ensure a dilution flow to the proper functioning of the preparation within the established parameters. The water and the product mix after passing through a mixer in line.
• The low-speed agitator with shaft and two stainless steel propellers installed in two chambers will give a total uniform solution.
• Due to geometry of the unit, the circuit of the passage of water and chemicals provides a preparation of reagents free of insoluble.
• The control panel has a button on overall safety and operation of individual switches with signal light and LED indicators with trend of the functioning of various elements, allowing the operator total control of the unit.
