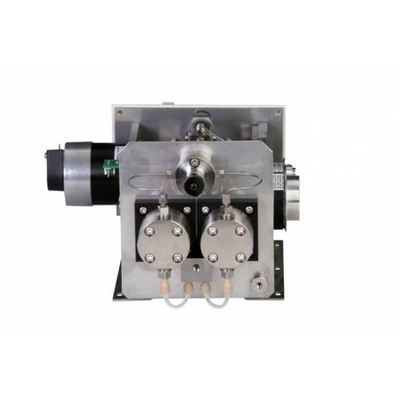

ECOM spol. s r.o. - Model IOTA50 -Preparative Pump
Iota 50 has flow-rate range from 0.1 to 50 ml/min. Maximum operating pressure is 30 MPa (4351 PSI). It has two pistons connected in parallel, with diameter of 3/8”. It is suited for preparative and flash applications in liquid chromatography but also for solvent pressurizing by samples extractions, etc. Beneficiary is also a very stable run even at low flow rates.
This pump is designed as OEM / built-in unit.
There is a possibility to use this pump even at high pressure gradient mode, where are two, three or four units controlled from PC using RS232.
Control board is mounted at the unit back side therefore the installation is very easy. Only connect power voltage and RS232 and pump is ready to work.
When working with buffered solvents, it is possible to use pistons back washing.
Pump is supported with software ECOMAC and Clarity.
IOTA PUMP is equipped with pressure sensor.
- Flow rate 0.1 – 50 ml/min
- Maximum operating pressure 30 MPa (4351 PSI)
- Flow rate setting 1 ml/min steps
- Repeatability of flow rate adjusting ± 1 %
- Accuracy of flow rate setting ± 2 %
- Wetted materials stainless steel, PEEK, ceramic, seals
- Communication RS232
- Power supply 24 – 36 V DC
- Power input 100 W
- Dimensions W x H x D 212 x 153 x 338 mm
- Weight 7 kg
- Output capillary outer diameter 1/16”
- Upper pressure limit (MPa) 0.1 – 30 (5800PSI)
