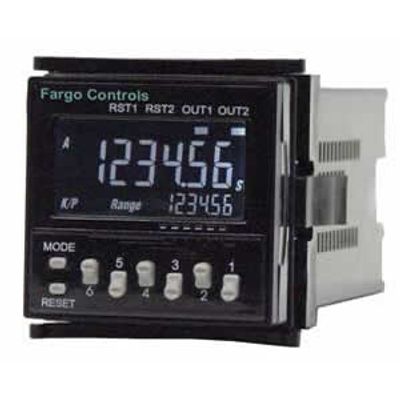

Fargo Controls - Model TC-48 Series -Preset Timer/Counter

The Timer has 10 output modes, 10 timing ranges in 3 configurations.

The Counter has 12 output and 5 input modes in 6 configurations and scaling for displaying of specific units or lengths.

The Tachometer displays rate per second (Hz) and has 4 output modes.

• Highly visible backlit LCD display
• Visual alerts when output status changes
• 2 output relays
• PNP/NPN selectable DC-voltage inputs
• Up/down, add/subtract and quadrature inputs
• 12VDC supply for powering sensor and encoders
• Keypad lock out functions
• Communications for connecting to PC/HMI
• Free Software to connect to a PC
• Low cost
• Panel or DIN Rail mount versions

• Function : Digital timer/counter/tachometer
• Supply voltage : 100-240VAC (50/60Hz) ±10%, : 16-24VDC ±10% (permissible ripple:20% (p-p) max.)
• Power consumption : Approx. 6.2VA at 264VAC, Approx. 5.1VA at 26.4VAC, Approx. 2.4W at 24VDC
• Mounting method : Panel mounting (45 x 45mm cutout)
• External connections : Screw terminals, tightening torque 0.5 N•m Max.
• Display : 6 Digit 7-segment, LCD display, Present value: 9-mm-high characters, white, Set value: 4-mm-high characters, white
• Input method : NPN No-voltage input/voltage input (switchable) No-voltage input ON impedance: 1kΩ max. (leakage current: 5-20 mA at 0Ω) ON residual voltage: 3V max. OFF impedance: 100kΩ min.
• PNP Voltage Input High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΩ
• Output method : Relay, (optional transistor output)
• Output : 2 SPST NO contact output: 5A at 250 VAC, resistive load (cos?=1)
• Minimum applied load: 10 mA at 5 VDC (failure level: P, reference value)
• Transistor output: NPN open collector, max. 100mA at 30 VDC
• Residual voltage: 1.5 VDC max. (approx. 1V)
• Output category according to EN60947-5-1 for timers with Contact outputs (AC-15; 250V 3A / AC-13; 250V 5A / DC-13; 30V 0.5A)
• Output category according to EN60947-5-2 for timers with Transistor outputs (DC-13; 30V 100 mA)NEMA B300 Pilot Duty, 1/4 HP 5-A resistive load at 120 VAC, 1/3 HP 5-A resistive load at 240 VAC
• One-shot output time : 0000.01-9999.99s
• External power supply : 12VDC (15%), 80mA
• Keypad lockout : Yes, 5 key protection modes
• Sensor waiting time : 250 ms max. (control output is turned OFF and no input is accepted during sensor waiting time)
• Memory backup : EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.
• Ambient temperature : Operating: -10 to 55°C (with no icing or condensation) Storage: -25 to 65°C (with no icing or condensation)
• Ambient humidity : 25% to 85%
• Case : Black plastic
• Attachments : Waterproof gasket, flush mounting adapter
• Life expectancy : Mechanical: 10,000,000 operations min.
• Electrical: 100,000 operations min. (5 A at 250 VAC, resistance load)
