PREMIER Lab Supply - Model E-MP-2500 - Press Pelletizing Starter Package
Creating an optimal pressed pellet for XRF analysis that meets with standard ASTM and ISO methods requires a laboratory grade press as well as premium quality accessories and consumable items.
-
Most popular related searches
Product Details

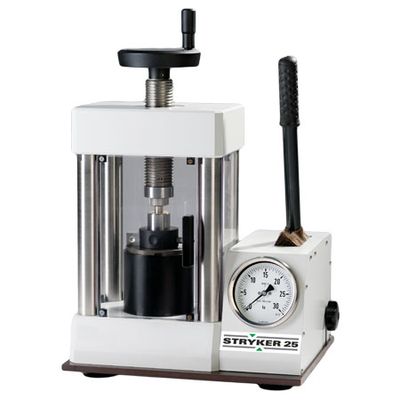

Starter Package Includes: 25 Ton Manual Press, Die Set, Filling Tool, Aluminum Cups, Pellet Film, Bead Labels, PlumaSol, Pellet Blend Binder
The preparation of solid pellets requires a hydraulic press. Together with a die it is possible to create a stable pellet from loose powder. Depending on the material, the use of a binder or an aluminum cup is recommended. The most common size and diameters used for XRF are 32 and 40mm. Based on the fact that pressure is force per surface it is recommended to use at least 15 tons for 32mm and 25 tons for 40mm.
Technical Specifications
- Max pressure 15/25 tons
- Pressure display 0-20t/0-30t
- Piston 108mm
- Piston stroke, max 25mm
- Bolster screw diameter 30 mm
- Bolster screw travel max 90mm
- Distance between pressing faces: 35mm minimum, 125mm maximum
- Area size D310mm x W290mm
- Weight 50.5kg
Additional Information
- Type: 25_Ton
- SKU: E-MP-2500
