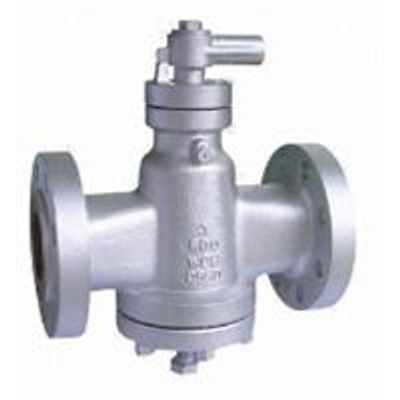

JirehModel JR-PV-01 -Pressure Balance Lubricated Plug Valve ace. To ANSI

SHARE

Inverted pressure balance lubricated plug valve ace. To ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc under nominal pressure of CLASS 150-900 lbs and working temperature of -29 ~180°C.

Most popular related searches
  • Structural formation: BC
  • Operating: Manual operated, electric actuated
  • Design: API 599; API 6D
  • Face to face: ASM E B 16.10
  • Flange end: ASME B16.5
  • Test & inspection: API 598; API 6D
