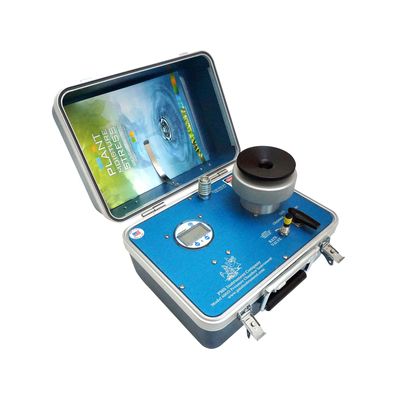

PMS - Model 600D -Pressure Chamber Instrument

Instrument comes fitted with our most popular sealing gasket size – 1/4 inch Compression Gland Gasket and Insert. This gasket will seal a sample that is 1/4 inch in diameter down to a completely closed position. If you need other sealing options such as bladed grass or other semi-round sizes check our other options.

This is an excellent choice for routine water measurements for crop plants and light research in plants with little to moderate water stress. For extensive research projects you might consider a Model 1000 or Model 1505D due to the large range of operating pressure. The instrument requires a nitrogen source. You can use it in a lab or green house with a large cylinder or buy our lightweight Portable Tank to allow for field work.

Instrument comes complete with:

1/4 Inch Compression Gland Sealing System, 5 Extra 1/4 Compression Gland Gaskets, 6 foot Filling Hose, 1 – Solid Lab Stopper for instrument testing, O-Ring lubricant and Lithium Grease, 11/32 inch wrench and 3/32 inch Allen Key for Control Valve Adjustment, Safety Glasses and a color Operating Instructions Manual.

• Maximum Operating Pressure: 40 bar
• Chamber Construction: Anodized Aluminum
• Chamber Size: 2.5 inch inside diameter x 5.0 inch inside depth
• Read-out: Digital Gauge (Reads in Bar, PSI or MPa)
• Size (L x W x H): 13 × 11 × 10 inches
• 33 × 28 × 24 centimeters
• Weight: 13 Lbs / 6 Kg
• Gauge:
• 2.5 Inch Diameter Gauge
• 0.5% accuracy
• 40 bar (4 Mpa) range
