Kordes Variant - Pressure Drainage Pump Station with Concrete Tank

Shaft systems

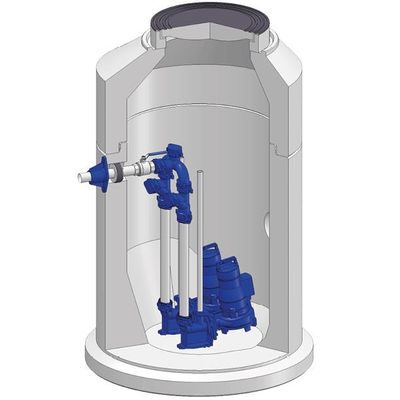

Pump station in concrete construction

• Inlet depth: 0.90 - 9.00 m
• Installation depth: 1.68 - 10.00 m
• Shaft diameter: Inside 1.000 mm / Outside 1.300 mm
• Storage volume up to inlet variable from 300 liters
• Pipe connections individually adaptable
• Cone or flat cover
• Covers BEGU / cast iron in class B/D and stainless steel in class A
• Ventilation
• Ladder

Armatures
Cast iron armatures in DN 50 with foot installation

• Armatures made of spheroidal cast iron with powder coating
• Rohrleitungen aus Edelstahl
• Depending on the shaft depth, the pipelines can be extended as required
• The pumps can be easily inserted into the coupling from above without entering the shaft
• Pump removal is possible at any time even without shutting off the slide valve
• The non-return ball valve prevents the backflow into the pump station
• The pipeline can be closed by a gate valve for repair purposes
• Flushing connection, vacuum breaker (optional)

Stainless steel armatures in DN 40/50 with foot installation

• Corrosion-resistant armatures and piping made of 100 % stainless steel
• Depending on the shaft depth, the pipelines can be extended as required
• The pumps can be easily inserted into the coupling from above without entering the shaft
• Pump removal is possible at any time even without shutting off the slide valve
• The non-return ball valve prevents the backflow into the pump station
• The pipeline can be closed by a gate valve for repair purposes
• Flushing connection, vacuum breaker (optional)

Pumps

For optimum flow rate and flow velocity, armatures, pressure lines and pumps must be precisely matched to the requirements of your construction site. Our product range extends from pumps with cutting impeller system for small wastewater volumes with admixtures, to pumps with free-flow impeller system. Both variants are available with and without explosion protection. For certain types of wastewater, pumps with special resistance to corrosive substances are also required.

Do not leave the right selection of your pump to chance and let us support you in the correct design. So that we can offer you the pump that is best suited for your construction site, we work together with the leading manufacturers of wastewater pumps. Our valve system can be combined with almost all common pumps with DIN flange.
