Pressure Level Measuring Device
The device can be used for liquid level measurement of fresh water, sea water, fuel oil tank, and four-point draught. In order to prevent the corrosion of seawater, the sensor material is corrosion-resistant, which extends the service life and reduces the maintenance.
Most popular related searches
level monitoring
level monitoring system
liquid level monitoring
pressure level monitoring
liquid level monitoring system
seawater tank
pressure monitoring
liquid level alarm
pressure sensor
pressure transmitter
- This unit can be used for liquid level measurement of fresh water, sea water, fuel oil tanks, and water draughts. In order to prevent the corrosion of seawater, the sensor material is corrosion-resistant, which extends the service life and reduces the maintenance.

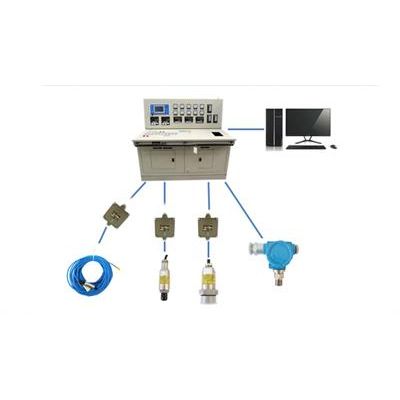

- The working principle is to convert the water pressure value sensed by the diaphragm into a corresponding liquid level value, and then send the converted digital signal to the control display device through the signal processor in the sensor.
- System measurement accuracy: ±0.1%FS
- Measurement dead zone: 100mm
- Range: 0~10m, 0~30m
- Power consumption: 5W per measurement point
- Communication interface: RS485
- Operating ambient temperature: -25°C to +80°C
- Power supply voltage: AC220V/50Hz, 110VAC/60Hz
- Connection cable: Power cable: 2×2.5mm2 Signal cable: 2×1.0mm
- Type approval certificate: CCS, GL, NK
- With high and low level and high limit low level alarm function, it can automatically emit audible and visual alarm signal.
- Pressure transmitters have IP56, Ip68 enclosures to meet the needs of different locations.
- With the measured medium specific gravity correction function
- With RS485 serial communication interface
- RDLY type pressure sensor with high measurement accuracy, and obtained CCS, CMC certificate
- With internal fault and sensor fault self-test function
