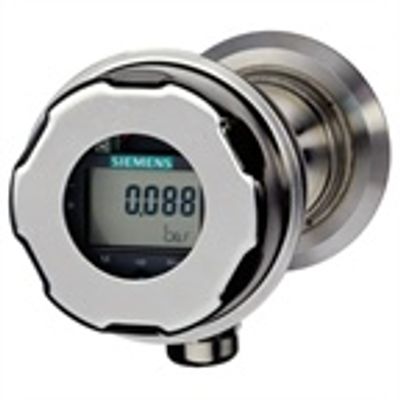

SPANS - Model P300 -Pressure Measurement System
The SPANS P 300 offers the measuring precision and ruggedness already known from the SPANS P DSIII. Its stainless steel housing with laser-printed nameplate, together with a wide range of hygienic process connections, mean that it is highly suitable for use in the food & beverages industry as well as for pharmaceutical processes. With a maximum deviation in measurement of 0.075% and the proven operating philosophy, it fits seamlessly into the SPANS P family.
Most popular related searches
pressure monitoring
pressure monitoring system
viscosity monitoring
process monitoring
process viscosity monitoring
pressure cell
process gauge
- Accuracy: ≤ 0,075%
- Long-Term Stability: ≤ 0.25% / 60 months
- Measuring range: 0 - 10 mbar (0 - 4 inchH2O) to 0 - 400 bar (0 - 5800 psi)
- With hygiene (EHEDG, 3A), material and calibration certificates eminently suited to the food and beverage and pharmaceutical industry
- Especially suitable for degrees of protection to IP68 and IP69K, CIP/SIP cleaning, and high-viscosity measuring process
- Measurement cells for gauge and absolute pressure
- Measurement cells with flush mounted diaphragm
- Extended simulations and diagnostic functions Parameters can easy set via three local push buttons and LCD display, HART or PROFIBUS PA profile 3.0 communication.
