CBRO - Pressure Relief Valves

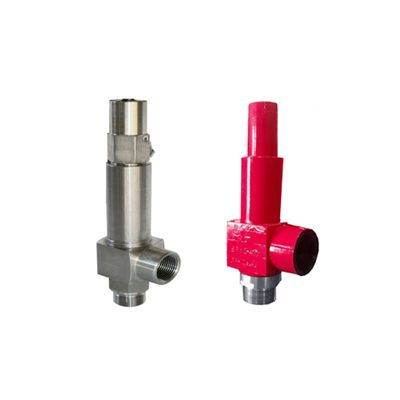

‘CBRO’ Conventional Safety Relief Valve model – CSRV 81 is used in many industries for protection against high pressure. This valve is used in the gas or liquid industries to control the pressure for high safety standards. Conventional Safety Relief Valve is used for the safety of various pressure devices like a tank, piping, boiler etc. Mainly the Conventional Safety Relief Valve is used to save property and life.
Most popular related searches
relief valve
safety relief valve
conventional safety valve
pressure relief valve
tightness testing
high-pressure valve
boiler pipe
safety system
Design Standard: API 520
Performance Standard: API 526
Seat Tightness Test: API 527
End Connection: Screwed To ASME B 1.20.1, Socket Weld To ASME B 16.11, Butt Weld To ASME B16.25, Flanged To ASME B 16.5
- Spring Loaded Safety Relief Valve
- Full Lift Pop Action Design
- Closed Bonnet With Pack Lever
- Satellite Nozzle & Disc Seating Area
- Soft Seat With P.T.F.E., Peek & Viton
Size: 1/4" Thru 2”
Rating: 150# & 300# / 600# & 2500#
End Connection: 150# & 300# / 600# & 2500#
Blow Down Pressure: 10% Less Then Of The Set Pr.
Hydrostatic Test Pressure: 10% Less Then Of The Set Pr.
Overpressure: 10% Of 10% Of The Set Pressure
Orifice Designation: D Thru G
Material: WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M,CF8C, CN7M, CD4MCu, Hast alloy, Inconel, Duplex, Stainless Steel
