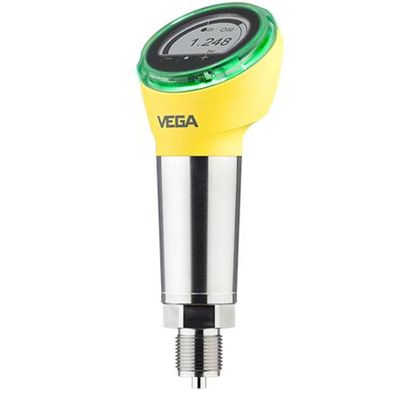

VEGABAR - Model 38 -Pressure Sensor with Switching Function
With ceramic measuring cell. Application area: From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation.VEGABAR 38 is a universal pressure transmitter with ceramic measuring cell for measuring gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.
- High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
- Coloured 360° status display, display and on-site operation with VDMA menu structure
- Easy integration into control systems through IO-Link communication
Level measurement in pH value regulation
To the applicationPressure and limit level measurement in the bottle cleaning process
To the applicationPressure monitoring and point level detection in the silage mill
To the applicationLevel, pressure and point level measurement in the fermentation tank
To the application- Measuring range - Pressure: -1 ... 60 bar [Bar - kPa - psi]
- Process temperature: -40 ... 130 °C [°C - °F]
- Accuracy: 0.3 %
- Materials, wetted parts:
- PVDF
- 316L
- Duplex (1.4462)
- Ceramic
- Threaded connection: ≥ G½, ≥ ½ NPT
- Hygenic fittings
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Clamp ≥ 1" - DIN32676, ISO2852
- Clamp ≥ 1½" - DIN32676, ISO2852
- Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
- Slotted nut ≥ DN25 - DIN 11851
- SMS DN38
- Hygienic fittings ≥ DN25 - DIN11864-1-A
- Hygienic fittings ≥ DN40 - DIN11864-1-A
- Varivent N50-40
- SMS DN25
- Ingold connection PN10
- Varivent F25
- Seal material
- EPDM
- FKM
- FFKM
- Housing material: Plastic
- Protection rating
- IP66/IP67
- IP65
- Output
- 4 … 20 mA
- Three-wire (PNP/NPN, 4 … 20 mA)
- IO-Link
- Ambient temperature: -40 ... 70 °C
Approvals
- Scope
- ATEX / Europe
- IEC / worldwide
- NEPSI / China
- INMETRO / Brazil
- CCOE / India
- KTL Korea
- TIIS / Japan
- IA
- Explosion protection: Intrinsic safety "i"
- Foodstuffs/Pharma
- FDA
- Drinking water
- EG1935/2004
- Ship approval
- ABS
- BV
- CCS
- GL
- LR
- NK
- RINA
Display & adjustment
- Adjustment
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
- Indication
- Graphic-capable clear text indication with background lighting
- 360° status display
