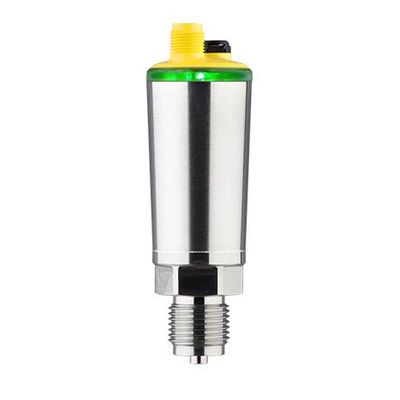

VEGABAR - Model 29 -Pressure Sensor with Switching Function
With metallic measuring cell. Application area: From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display. VEGABAR 29 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.
Most popular related searches
pressure monitoring
metal thickness monitoring
universal pressure transmitter
level monitoring
intrinsic safety
explosion protection
pressure transmitter
pressure sensor
pressure level monitoring
laboratory homogenizer
- Universally applicable due to fully welded metallic measuring cell
- Coloured 360° status display, adjustable
- Easy integration into control systems through IO-Link communication
Yeast separator
Pressure and limit level measurement in the yeast separator
To the applicationSteam separator
Steam separator pressure measurement and point level detection.
To the applicationPreheater
Pressure measurement in the preheater
To the applicationHomogenizer
Pressure measurement in a homogenizer
To the application- Measuring range - Pressure: -1 ... 1000 bar [Bar - kPa - psi]
- Process temperature: -40 ... 130 °C [°C - °F]
- Accuracy: 0.3 %
- Materials, wetted parts: 316L
- Threaded connection: ≥ G½, ≥ ½ NPT
- Hygenic fittings
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Clamp ≥ 1" - DIN32676, ISO2852
- Clamp ≥ 1½" - DIN32676, ISO2852
- Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
- Slotted nut ≥ DN25 - DIN 11851
- SMS 1145 DN51
- SMS DN38
- Hygienic fittings ≥ DN25 - DIN11864-1-A
- Hygienic fittings ≥ DN40 - DIN11864-1-A
- Varivent N50-40
- SMS DN25
- Ingold connection PN10
- Varivent F25
- Protection rating
- IP65
- IP68 (0,5 bar)/IP69
- Output
- 4 … 20 mA
- Three-wire (PNP/NPN, 4 … 20 mA)
- IO-Link
- Ambient temperature; -40 ... 70 °C
Approvals
- Scope
- ATEX / Europe
- IEC / worldwide
- NEPSI / China
- INMETRO / Brazil
- CCOE / India
- KTL Korea
- c-UL-us
- Explosion protection
- Intrinsic safety "i"
- Increased safety "e"
- Foodstuffs/Pharma
- 3A
- EHEDG
- FDA
- EG1935/2004
- Ship approval
- ABS
- BV
- CCS
- GL
- LR
- NK
- RINA
Display & adjustment
- Adjustment
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
- Indication: 360° status display
