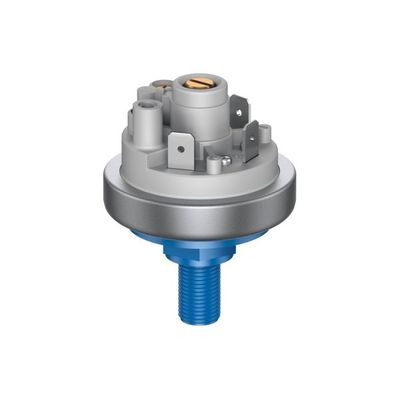

Beck - Model 901 EX -Pressure Switches
Factory-set pressure switch monitoring overpressure, vacuum or differential pressure of liquid and gaseous – also aggressive – media. Pressure setting and switching differential are factory-set by the manufacturer. For temperature above 85° C metal or PPS pressure connection is required. Upon request pressure connections of other sizes, other plastics or brass nickel-plated are available.
Temperature range:
Temperature of media and ambient temperature from -20°C to 85°C
Storage temperature: -40° C bis +85° C
Diaphragm material:
Depending on media NBR, Silicone, FKM (Viton®), EPDM. For 901.30 Silicone, others upon request.
Pressure connection:
Material: PA, PVDF, Brass, Stainless steel
Hose nipple: 5,0mm, 6,5mm, 10,0mm
Thread: M10x1, G1/8, G1/4, G1/2
Electrical rating:
24 VDC/100 mA
30 VDC/45 mA
Electrical connection:
AMP flat plug 6.3 x 0.8 mm according to DIN 46244 or push-on screw terminals
Protection class:
IP 54 (with cover 6371)
