RIELS Instruments S.r.l.

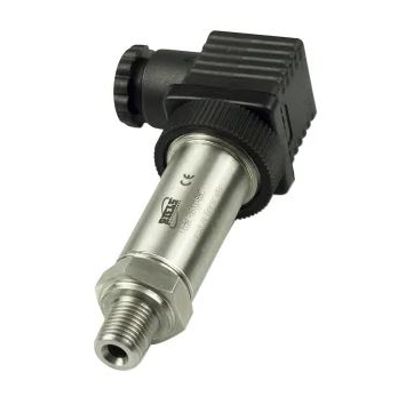

RIELS - Model RIB100 -Pressure Transmitter
RIB100 Pressure transmitter for neutral, food or aggressive fluids. The RIB100 Pressure Transmitter is suitable for general industrial applications and, in a special version, also for the refrigeration and air conditioning sector, for the food industry or for medical gases.This very accurate pressure transmitter with a large number of variants is suitable for many applications. The measuring ranges, the output signals and the process connections can be supplied on specification according to the individual requirement.
Most popular related searches
pressure transmitter
process fluid
pressure monitoring
silicon sensor
EN standard
air conditioning
RoHS regulations
explosion protection
refrigerant air conditioning
RoHS
Product features
- Principle of measurement: Pressure
- Informations measured: Pressure
- Detection type: Continuous measurement
- Measurable media: Air, Diesel, Hydraulic Oil (Synthetic), Natural Gas, Water., (the indications on liquids are indicative and vary with the configuration of the product)
- Explosion protection: Safe zone
- Minimum process fluid temperature: -20 °C
- Maximum process fluid temperature: 70 °C
- Measurement type: With contact
- Storage temperature: -20...+ 125°C
- Ambient temperature: -20...+ 85°C
- Sensor type: Piezoresistive silicon sensor
- Properties of the fluid: Aggressive
- Pressure range: 0...100 bar
Details of the signal inputs and outputs
- All signal outputs available: 4...20 mA, 0...10 Vdc, 0...5 Vdc
- load resistance: <(Vs-12)/0,02A (current) ; >10kΩ (voltage)
- Output details: 1 x Analog 0…10 Vdc
Electrical data
- Voltage type: 24 Vdc
- Type of electrical connection: M12x1 connector (4 pins)
- Reverse polarity protection: No
- Degree of protection: IP65
- Max current consumption: 0,02 A
- Insulation resistance: 100MΩ (50 Vdc)
- Operating voltage: 12...36 Vdc
Mechanical data
- Process connection type: Threaded GAS(M)
- Diameter process connection: 1/4" - DN6
- Materials in contact with the measured fluid: AISI 316L (1,4404) - Stainless steel
- Seal materials: NBR - Nitrile Rubber
- Diaphragm material: AISI 316L (1,4404) - Stainless steel
- Oil filling: Silicone oil
- Body material: AISI 304 (1,435) - Stainless steel
- Impact protection: 100 g (10ms)
- Vibrations resistance: 10 g (20...2000 hz)
- Height: 61,5 mm
- Width: 26,5 mm
- Depth: 26,5 mm
- Case material: AISI 304 (1,435) - Stainless steel
Performance data
- Accuracy: ±0,5% Full scale
- Cycles of measurement: 10000000
- Accuracy:
- 0,5% Full scale
- Temperature coefficient zero point:
- ±1,5% Full scale
- Temperature coefficient span:
- ±1,5% Full scale
- Long-term stability: ±0,3% Full scale
Approvals
- Naval approvals: None
- Food / pharmaceutical approvals: None
- Atex approvals: None
- Standards and Certifications: RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
- EMC applied harmonized standards: EN 61326 (For industrial applications)
- CE omologation: Yes
- Low voltage applied harmonized standards: EN 61010-1: 2010
- Rohs applied harmonized standards: EN IEC 63000:2018
Logistics
- Type of packaging: Carton BOX
- Contains batteries: No
- ETCN: N/D
- country of origin: Italy
- Customs Code: 90262020
- Gross weight: 0,5 kg
- Net weight: 0,185 kg
- Packaging volume: 0,007 m³
- Packing length: 26 cm
- Packaging width: 21 cm
- Packaging depth: 13 cm
