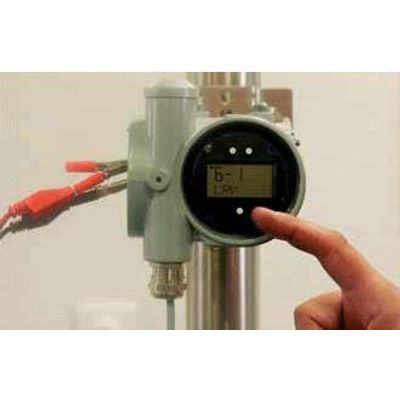

Fuji Electric - Model FCX-AII V5 and FCX-AII VG -Pressure Transmitter
Excellent repeatability - Easy maintenance - High accuracy; Available in a “Smart” version (4-20 mA + superimposed digital signal) with the Fuji proprietary protocol and the Hart® protocol. Equipped with the Fieldbus Foundation H1 protocol (option). Manufactured according to ISO9001 standards.
Most popular related searches
pressure transmitter
water treatment system
differential pressure transmitter
beverage water treatment
safety system
integrated safety
water treatment
beverage water production
beverage water
calibration standard
FCX-AII VG : Integrated Safety Systems (IEC 61508)
- With a SIL 3 capability, the FCX-AII in its VG version is SIL2 (HFT=0) or SIL 3 (HFT=1) certified
- Its 97% safety failure ratio allows it to offer the best SFF available on the pressure transmitter market.
- The FCX-AII VG has a sampling time of 40 ms and a response time of 80 ms, making it one of the fastest pressure transmitters on the market.
- Accuracy :Long term stability : ± 0.1% max.span /10 years
- ± 0.065% of the calibrated span (standard)
- ± 0.04% of the calibrated span (option)
- Differential pressure transmitters for static pressure : up to 1035 bar (15 000 PSI)
- Various materials available for wetted parts : Tantalum, Monel, Hastelloy C, ou PVDF
- Applications : chemicals, petrochemicals, energy, steel-making, paper, food & beverage or water treatment
- Decrease of hysteresis and mechanical fatigue problems on the sensitive element
- Very high zero stability and long term reliability
The sensitive element receives the differential pressure, which causes the two capacity values to vary. It is mounted “floating” in the neck of the measurement cell to improve the static pressure and temperature characteristics.
