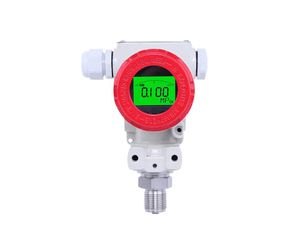

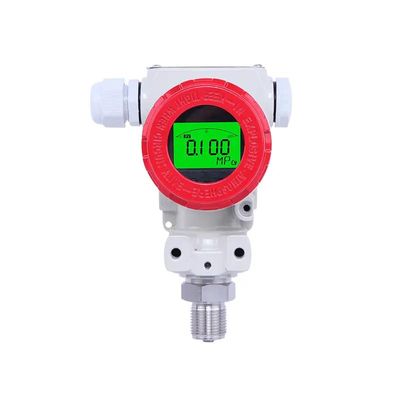

Meacon - Model MIK-PX400 -Pressure Transmitter
MIK-PX400 pressure transmitter take use of OEM all-welded pressure core body, miniature amplifier processing circuit. The products are widely used in industrial process control, petroleum, chemical, metallurgy and other industries. Features Range:-0.1~ 0 ~ 60MPaResolution:0.5% F.S; 0.3%F.S optionalOutput signal: 4~20mAInstallation: ThreadPower supply:24VDC (9 ~ 36V)Most popular related searches
Product
Pressure transmitter
Model
SUP-PX400
Measure range
-0.1 … 0/0.01 … 60Mpa
Pressure type
Gauge pressure, adiabatic pressure and sealed pressure
Accuracy
0.5% F.S
Output signal
4~20mA
Temperature compensation
-10 ~ 70 ℃
Working temperature
-20 ~ 85 ℃
Medium temperature
-20 ~ 85 ℃
Storage temperature
-40 ~ 85 ℃
Overload pressure
150%FS
Long-term stability
± 0.2%FS/year
Power supply
24VDC
