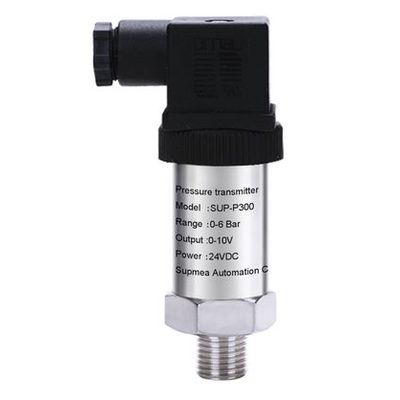

Asmik - Model P300 -Pressure Transmitter

MIK-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc

• Model: MIK-P300
• Measure range: -0.1…0/0.01…60Mpa
• Pressure type: Gauge pressure, adiabatic pressure and sealed pressure
• Accuracy: 0.5% F.S; 0.2%F.S,0.25%F.S, optional
• Output signal: 4…20mA; 1…5V; 0…10V; 0…5V; RS485
• Temperature compensation: -10…70 ?
• Working temperature: -20…85 ?
• Medium temperature: -20…85 ?
• Storage temperature: -40…85 ?
• Overload pressure: 0.035…10MPa(150%FS)10…60MPa(125%FS)
• Long-term stability: ± 0.2%FS/year
• Power supply: 10-32V (4…20mA);12-32V (0…10V);8-32V (RS485)
