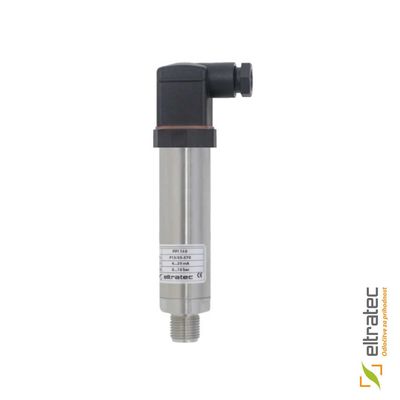

Eltratec - Model PPI 130 -Pressure Transmitter

Compact and robust transmitters are used to measure the pressure of aggressive and corrosive liquids and gases. The housing is made of stainless steel.

Power supply: 9 ... 27 VDC (two-wire connection, reverse polarity protection)

Measuring range: min. 0-4 bar, max. 0-20 bar. Typical range: 0-6 bar, 0-10 bar, 0-16 bar

Programmable measuring range by user

Pressure overload: max. 300%

Output signal: 4 ... 20mA current

Max. resistance of the current loop (at 24VDC feeding): 750 Ohm

Temperature of the media: -30 ... +120 C (media must not freeze)

Measuring accuracy: Non-linearity and hysteresis: max. 0,3% of the measuring range

Environment temperature influence: < 0,1%/10ºK

Protection: IP 65 (el. connenctor)

Process connention: R1/2''

Sensor membrane material: stainless steel 316L
