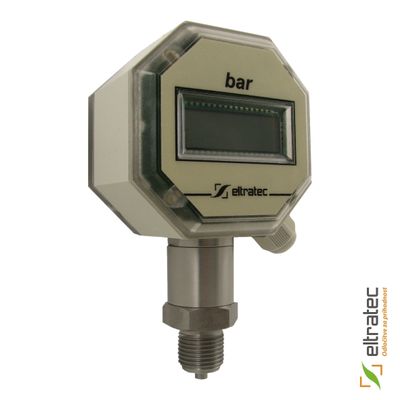

Eltratec - Model DMT 202 -Pressure Transmitter

The transmitter measures the level or pressure of aggressive and corrosive liquids and gases and has also a LCD-Display. The body is made of stainless steel, the head is made of polycarbonate. It has digital RS485-Modbus communication.

Power supply: 12 ... 24 VDC

Measuring range: on order (up to 30 bar or 300m)

Programmable measuring range by user

Pressure overload: max. 300%

Output signal: digital RS 485-Modbus (ASCII or RTU), 3 digital outputs (optional)

Temperature of the media: -40 ... +90 C (media must not freeze)

Measuring accuracy: Non-linearity and hysteresis: max. 0,2% of the measuring range (typically 0,1%)

Environment temperature influence: < 0,1%/10ºK

Time stability: max. 0,2%/year

LCD Display (7 digit)

Protection: IP 65 (el. connector)

Process connention: R1/2''

Sensor membrane material: stainless steel 316L
