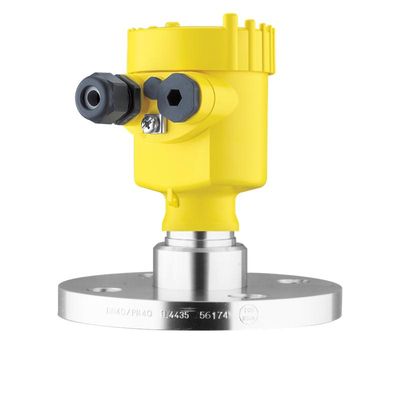

VEGABAR - Model 82 -Pressure Transmitter with Ceramic Measuring Cell
The all-rounder with ceramic measuring cell. Application area: Universally applicable pressure transmitter. The ceramic measuring cell is resistant to temperature shocks. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement. The VEGABAR 82 pressure transmitter can be used universally for the measurement of gases, vapours and liquids. Substances such as sand can be handled easily thanks to the abrasion-resistant ceramic measuring cell. The VEGABAR 82 offers maximum reliability. The transmitter can be used in all industries. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.
- Low maintenance costs thanks to wear-free ceramic measuring cell
- High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
- Measurement down to the last drop through smallest measuring ranges with high accuracy
The robust, all-round pressure sensor with ceramic measuring cell
The pressure sensor VEGABAR 82 is the robust all-rounder with an innovative flush mounted ceramic measuring cell that VEGA manufactures itself, as a full-range supplier of pressure instrumentation. A real highlight: the ceramic pressure sensor is resistant to thermal shock. The versatile standard instrument handles temperatures up to 150° C. The extremely high overload factor of 200 is unique to the market. This pressure sensor covers 80% of all applications in the process industry. With its oil-free ceramic CERTEC® measuring cell it is well equipped for use in all areas of industry:
- Monitoring of feed pressure in sewage pipelines
- Overload-resistant level and gauge pressure measurement in pressurized batch vessels
- Level measurement of paper pulp level in bleaching towers, to protect against dry-run damage to the discharge pumps
- Monitoring of negative pressure in distillation columns (down to absolute vacuum)
Differential pressure measurement and point level detection in filter systems
To the applicationPressure measurement in the delousing process
To the applicationLevel measurement and point level detection in the storage tank for milk and milk products
To the applicationLevel measurement in fresh water and pool water tanks
To the application- Measuring range - Distance: - [Meter-Foot]
- Measuring range - Pressure: -1 ... 100 bar [Bar - kPa - psi]
- Process temperature: -40... 150°C [°C-°F]
- Process pressure: -1 ... 100 bar [Bar - kPa - psi]
- Accuracy: 0.05%
- Materials, wetted parts:
- PVDF
- 316L
- Alloy C22 (2.4602)
- PP
- 1.4057
- 1.4410
- Alloy C276 (2.4819)
- Duplex (1.4462)
- Titanium Grade 2 (3.7035)
- Threaded connection: £ QYz, £ Yi NPT
- Flange connection: 2DN15, £W"
- Hygenic fittings:
- Clamp £ 1" - DIN32676, IS02852
- Slotted nut£DN25-DIN 11851
- hygienic fitting with tension flange DN32
- hygienic fitting F40 with compression nut
- DRD connection o 65 mm
- SMS1145DN51
- SMS DN38
- Swagelok VCR screwing
- VariventG125
- VariventN 50-40
- forNEUMO BioControl D50PN16/316L
- Seal material:
- EPDM
- FKM
- FFKM
- Housing material:
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- Protection rating:
- IP66/IP68(0,2bar>
- IP66/IP67
- IP66/IP68(1 bar)
- IP66/IP68(25bar)
- IP69K
- Output:
- Profibus PA
- Foundation Fieldbus
- 4... 20 mA
- 4 ... 20 mA/HART - two-wire
- Modbus
- Secondary electronics for electronic differential pressure
- Ambient temperature: -40... 80 °C
Approvals
- Scope:
- ATEX / Europe
- CSA/Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC/worldwide
- INMETRO/Brazil
- CCOE/India
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Foodstuffs/Pharma:
- 3A
- EHEDG
- FDA
- Drinking water
- EG 1935/2004
- Ship approval:
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- Overfill protection:
- WHG
- VLAREM II
- SIL qualification: SIL2
Display & adjustment
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- H ART-Co m muni cato r
- Software (e. g. AMS™. PDM)
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
