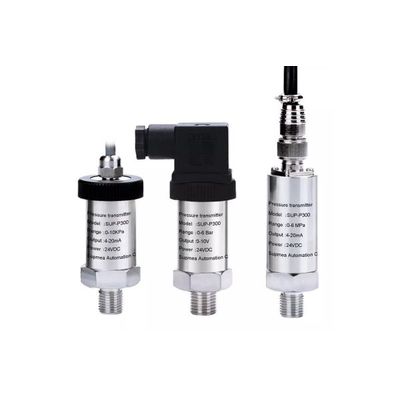

Meacon - Model SUP-P300 -Pressure Transmitter with Compact Size for Universal Use
SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
Most popular related searches
pressure transmitter
piezoresistive pressure sensor
pressure monitoring
pressure sensor
pressure seal
pressure gauge
HVAC equipment
HVAC
- Range: -0.1~ 0 ~ 60MPa
- Resolution: 0.5% F.S; 0.3%F.S optional
- Output signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485
- Installation: Thread
- Power supply: 24VDC (9 ~ 36V)
- Product : Pressure transmitter
- Model: SUP-P300
- Measure range: -0.1 … 0/0.01 … 60Mpa
- Pressure type:
- Gauge pressure, adiabatic pressure and sealed pressure
- Accuracy: 0.5% F.S; 0.2%F.S,0.25%F.S, optional
- Output signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485
- Temperature compensation: -10 ~ 70 ?
- Working temperature: -20 ~ 85 ?
- Medium temperature: -20 ~ 85 ?
- Storage temperature: -40 ~ 85 ?
- Overload pressure: 150%FS
- Long-term stability: ± 0.2%FS/year
- Power supply: 24VDC (9 ~ 36V)
