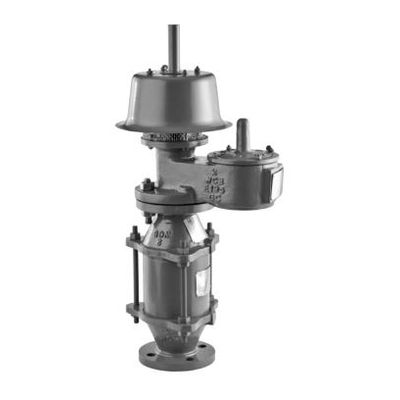

Groth Biogas - Model 8800 -Pressure Vacuum Valve and Flame Arrester for Biogas Systems
The Groth Model 8800 is a sophisticated pressure/vacuum relief valve and flame arrester designed to safeguard biogas systems from potential damage due to overpressure and excessive vacuum conditions. The device incorporates Groth's unique cushioned air seating technology and superior fluoropolymer seating diaphragms, minimizing the effects of resinous vapors and atmospheric moisture. The valve features self-draining housings and drip rings, which protect the seating surfaces against condensate buildup and freezing, thus ensuring reliable functionality in varying environmental conditions. Additionally, the integrated flame arrester offers protection from external heat sources and ignition, reducing emission levels and significantly enhancing fire safety. This model combines the reliability and efficiency of the 1200 Pressure Vacuum Relief Valve with the robust protection of the Groth Biogas Model 7618 Flame Arrester, making it a critical component for municipal, food & beverage, dairy farms, and landfill industries.
The Groth Model 8800 Pressure Vacuum Valve and Flame Arrester combination units are designed to protect your tank from damage created by over- pressure or excessive vacuum, at the same time that they provide protection from externally caused sources of heat and ignition. The result is increased fire protection and safety.
- Gas Group: NEC D, IEC IIA
- Pre-Ignition Pressure = Atmosphere
The Groth Biogas Model 8800 is a combination of the 1200 Pressure Vacuum Relief Valve and Groth Biogas Model 7618 Flame Arrester. The superior Buna-N seating diaphragms are standard on the valve to insure extra tight sealing to prevent sludge vapors escaping. Self draining housing body and drip rings protect seating surface from condensate and freezing. The 1200/7618 helps protect your tank from damage created by overpressure or excessive vacuum, at the same time it provides protection from externally caused sources of heat and ignition. The result is reduced emissions level and increased fire protection and safety.
- Cushioned Air Seating
- Fluoropolymer seating diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture
- Self draining housing and drip rings
- Spiral-wound, crimped ribbon flame element
- Modular Construction
- Sizes: 2” (DN 50) through 12” (DN 300)
- Pressure Settings 0.5oz/in2 to 15 psig
- Vacuum Settings: 0.5 oz/in2 to 12 psig
- Materials: Aluminum, Carbon Steel, Stainless Steel and other materials
- Buna-N, Fluoropolymer, FKM and other seating diaphragms
The Model 8800 Pressure/Vacuum Relief Valve offers Groth’s special “cushioned air” seating. Superior performing fluoropolymer seating diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture. Self draining housings and drip rings protect seating surfaces from condensate and freezing.
