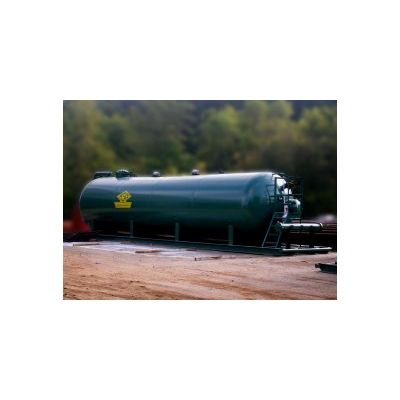

Waterford - Pressure Vessel Tanks
Customers from the industrial, natural gas midstream, petrochemical, oil and gas, construction, as well as many other commercial industries rely on Waterford Tank & Fabrication for premium quality pressure vessels. Our state of the art manufacturing facility has 80,000 square feet, enabling us to accommodate custom fabrication jobs in all dimensions and capacities. Waterford’s pressure vessels meet the industry’s toughest standards (ASME, Section VIII, Division I) and are available in competitive lead times, all while maintaining the highest levels of quality.
At Waterford Tank and Fabrication we can manufacture your custom designed pressure vessel to your exact specifications using carbon steel or stainless. Our capabilities allow us to construct horizontal and vertical vessels in cylindrical or oval geometries with a variety of supports (saddle, legs, skirt, etc.) in capacities ranging from 18,000 gallons to 65,000 gallons.
Waterford offers a variety of pressure vessel configurations; head configurations include reverse dished, elliptical, and hemispherical. Waterford pressure vessels and can include an epoxy, plastic, or thermoplastic internal lining for your specific storage material. Custom pressure vessels can be built up to 15.6 ft. in diameter, 60 ft. in length, and with wall thicknesses that range between 1/3” and 1-3/8”. At Waterford we build tanks weighing up to 60,000 lbs., with maximum pressure ratings of 1440 and operating temperatures up to 125°F.
A Waterford Pressure Vessel can handle a wide variety of process materials ranging from: air, acid, ammonia, coolants, bio-fluids, gas, hydrogen, steam, water, and oil. Waterford Tank and Fabrication is an ISO certified facility for fabricating products that are designed and constructed to meet the highest industry standards, including ASME, API, and ASTM. We offer volume orders ranging from 1 to 500 pressure vessels and with lead times that vary from 24 to 60 days.
To learn more about Waterford’s Pressure Vessels or our custom fabrication services please contact us directly regarding your next project.
- API-12F-0093
- API-Q1-1915
- APIQR-2041ou
- ASME "U" Stamp Authorization
- ASME "R" Stamp of Authorization
- ISO Certified Tanks
- 18,000 gal - 9’ X 40’
- 18,000 gal – 11’6” X 47’6”
- 30,000 gal - 9’ X 66’
- We will build to your exact specifications!
- Vessel Size (diameter and length or capacity)
- Vessel orientation (horizontal or vertical)
- Type of supports (saddles, legs, skirt or support lugs)
- Design pressure (internal and external)
- Design temperature (min and max)
- Corrosion allowance (if applicable)
- Material of construction (Steel or Stainless)
- Product including design specific gravity
- Openings: Quantity, size, type and location
- Type of external paint or internal lining if applicable.
- Appurtenances: internals, insulation supports, ladders or platforms
- Location of installation for wind/ seismic design and freight estimate
- Specifications beyond ASME requirements
- UL 142
- Stationary
- Horizontal
- Vertical
- Cylindrical
- Oval
- Flat Plate
- Sheet
- Welded
- Elliptical
- Hemispherical
- Reverse Dished
- Double Wall
- Foam Insulated
- Jacketed
- Lifting Lugs
- Multi-Compartmental
- Portable
- Stainless Steel
- Steel
- Epoxy
- Plastic
- Thermoplastic
- Painted
- Unfinished
- Acid
- Air
- Ammonia
- Biofluids
- Coolants
- Gas
- Hydrogen
- Oil
- Steam
- Water
- Max: 1440 cfm ft.
- Max: 125˚F
- Min: 18 in
- Max: 15.6 ft.
- Min: 18 in
- Max: 60 ft.
- Min: 1/3 in
- Max: 1 3/8 in
- Max: 60,000 lb.
- Min: 1
- Max: 500
- Specialty Production Shop
- Prototype
- Low Volume
- High Volume
- Min: 24 Days
- Max: 60 Days
- Agricultural
- Chemical
- Construction
- Cryogenic
- HVAC
- Mining
- Petrochemical
- Filtering System
- Heat Transfer
- Storage
- ASMEAmerican Society of Mechanical Engineers Sect VIII Div 1
- APIAmerican Petroleum Institute
- ASTMAmerican Society for Testing and Materials
- AWSAmerican Welding Society
- ISOInternational Organization for Standardization
- AutoCAD (DWG,DWZ)
- DXF
- IGES
- JPG or JEPG
- TIFF
