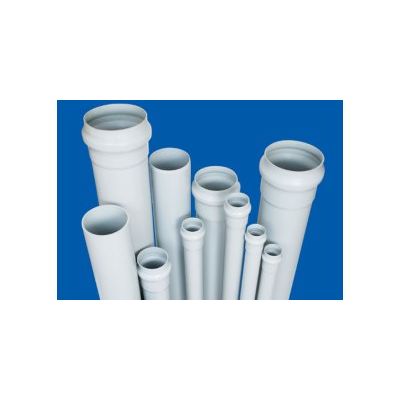

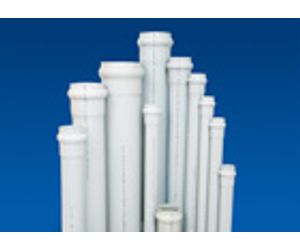

Duzgunler - Pressure Water PVC-U Pipes

Duzgunler Plastic pipes are produced in a range of pressure ratings 4, 6, 10 and 16 Bar. Duzgunler Plastic pipes are produced in a range of nominal pressure (PN) at 20°C. The appropriate derating factors should be applied for working pressures when subjected to higher temperatures. The nominal outside diameters and nominal wall tickness are based on an overall service (design) coefficient C=2,5 from 50 mm.to 90 mm. and C= 2 from 110 to 355.

Duzgunler Plastic pipe is used in a wide range of applications, such as:

• Irrigation systems main/sub-mains.
• Chemical industrial processes.
• Pressurized water supply (city town, industrial, home, commercial.)
• Drainage/sewage applications.
• General services, domestic water, A/C drainage.
• Ducting, electrical, telecommunication.
• Industrial process plants oil/gas/petrochemical.
• Desalination processes, brine disposal, mineral water

Features of Duzgunler Plastic U-PVC pipes;

• Fully compliant with TS 274 EN 1452 and ISO standarts.
• Resistant to a wide range of chemicals and corrosion.
• High Impact Resistance
• Quality assured and tested to the strict specifications of the standard for dimension compliance, impact resistance, burst pressure, flattening & joint tightness.
• Smooth internal bore for low friction losses.
• Compatible with the full range of PVC-U Pressure fittings.
• Long service life under a wide range of conditions.
• Will not support combustion.
