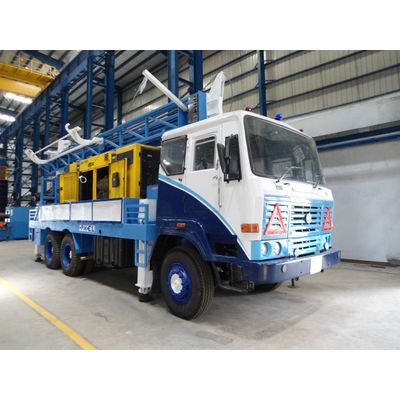

Prime - Model PDTHR-400 -Truck Mounted Drill Rig
FromPrime Rigs Ltd
PRL Truck Mounted Drill Rig Model PDTHR-400 Brand New is primarily designed for water well applications as drinking water or for agricultural use. PRL PDTHR- 400 is among the best and most sought-after truck-mounted drilling rigs in the market. It is intended for use in borehole drilling for consumable and agricultural purposes. PRL PDTHR 400 Brand New is designed for 152-254mm (6 “- 10”) diameter holes with a down-the-hole hammer and 152 – 304mm (6”-12”) with Rotary operation.
Most popular related searches
truck mounted drilling rig
drilling rig
down the hole hammer
water well drilling rig
water drilling rig
water injection pump
water well drill
water drilling
water well
mud pump
- Make: Ashok Leyland
- Drive: 6 x 4
- Gross Vehicle weight: 25 MT
- Engine Rating: 180 HP @ 2400 rpm
Air Compressor:
- Make: ELGI / Atlas Copco
- Model: 1200/330
- CFM: 1200
- PSI: 330 (24 Bar)
Drill Depth:
- Maximum Depth: 400Meters(1300Feet)
- Rod Handling: 4.5 inch(15Feet)
- Hole Diameter:
- DTH: 152 – 254mm(6"- 10")
- Rotary: 152 – 350mm(6”-14”)
Mud Pump:
- Make: G&P/ Lakshmi
- Model: 6”X6”
- Stroke: 150mm
- Liner Size: 150mm
Mast:
- Max Capacity: 18 tons (39600 lbs)
- Height: 8.0 mtr (27 ft)
- Rod handling capacity: 4.5 mtr (15 ft)
Main Hoist Assembly:
- Line Pull ( Bare Drum): 3000 Kgf
- Max Line Speed: 40 M/Minute
- Wire Dia: 16 mm
- Drive: Hydraulic
Feed System:
- Pull Up: 11,500 Kgf
- Pull Down: 6,000 Kgf
- Hoisting Speed: 35 Mtr/Minute
Water Injection Pump:
- Max Flow: 56 LPM
- Max Pressure: 30 kg/cm 2
Auxillary Winch:
- Bare Drum Pull: 1000 Kgf
- Max Speed: 20 M/Minute
Hydraulic Circuit:
- Max Operating Pressure: 220 kg/cm2
- Hydraulic Tank Capacity: 600 Litres
- Filtration Non –Returnline: 10/25 Microns
Rotary Head:
- Torque: 600 Kg-M
- Rotation Speed: 1 -100 Rpm
Cylinders:
- Stabilizing Cylinders 4 Nos: 125 mm(Bore), 610 mm(Stroke)
- Mast Raising Cylinder: 100 mm(Bore), 800 mm(Stroke)
- Feed Cylinder: 140 mm(Bore), 2350 mm(Stroke)
- Break out Wrench: 80 mm(Bore), 300 mm(Stroke)
- RH Slide Out Cyliner: 80 mm(Bore), 450 mm(Stroke)
- Water tank: 200 liters
- Welding Generator: 250 amps
