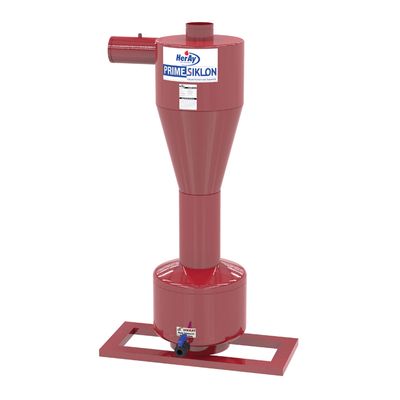

PrimeCyclone Separator
Main Specifications: Filter Technology: Cyclone-Disc. Body Material: S235JR Carbon Steel. Drainage valf: Manual. Filtration Grade: 130 micron. Pre-coating: Chemical cleaning. External and Internal Coating: Electrostatic Baked Polyester-Epoxy Powder Paint, according to demand it can be manufacture hot dipped galvanzied. Connection types: Victaulic, Threaded(BSP, NPT), Flange(ISO, ANSI). Max. Working Pressure: 8 Bar (116 psi). Min. Working Pressure: 1 Bar (21,7 psi). DP(pressure loss): 0.5 – 0.9 Bar (7 – 13 psi).
PRODUCT CODE : INLETOUTLET(INCH) : FLOWRATE (m³/hr) min-max : CAPACITY OF SEDIMANTATION TANK
PS-200 : 2" Female Threaded : 11 -- 20 : 15
PS-250 : 2 1/2" Female Threaded : 20 - 30 : 15
PS-300 : 3" Female Threaded : 30 - 45 : 15
PS-400 : 4" Female Threaded : 55 - 85 : 30
PS-500 : 5" Female Threaded : 100 - 135 : 80
PS-600 : 6" Female Threaded : 135 -190 : 80
PS-800 : 8"Flange : 230 - 350 : 150
