Primus Line - Model R-Connector -Tension-Resistant Pipe Connectors

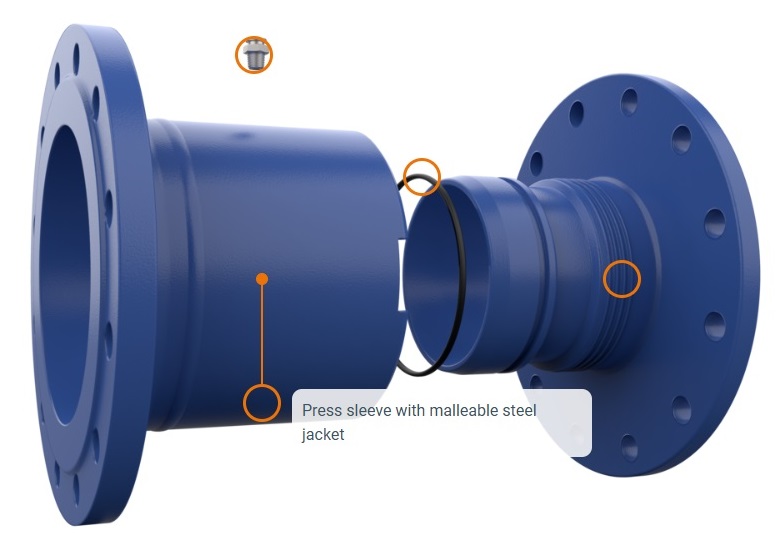

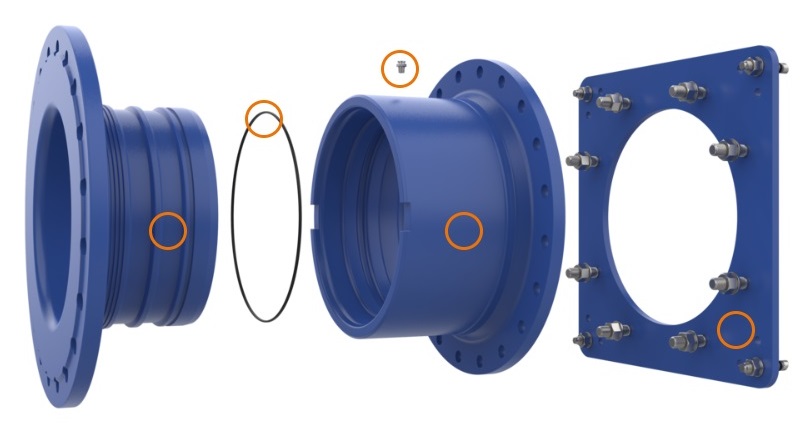

The principle of a tension-resistant connection between liner and R-Connector is always the same: The outer sleeve has an inner jacket made of malleable steel. Under high pressure, a two-component resin is pressed through the valve which presses the steel jacket and the liner into the profile of the core. This creates a durable and stable unit once the resin has hardened. For wall mounting in manholes, the connector is also available with a mounting plate. Connectors with welded ends are also available. This makes this type the most flexible of the Primus Line® connectors.
