ProCepT - Model R&D -Spray Dryer / Chiller

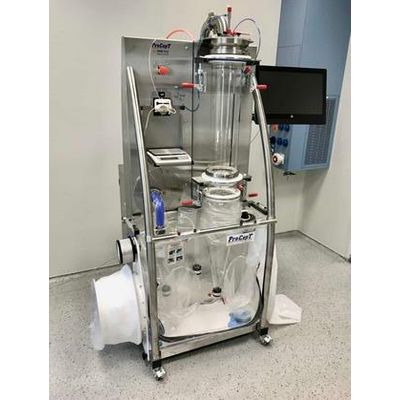

Our Spray Dryer / Chiller has unique features including a stainless steel head with supporting structure for the glass column. It is normally integrated on a trolley but it can be wall mounted. All the components are easily accessible and the use of glass allows maximum visibility of the various processing stages.

• High process yields (>90%) from a few ml to batches of several liters.
• Particles from 1-350µm
• Water and organic solvents
• Different nozzle types: 2-fluid, 3-fluid, cooled, heated, ultrasonic.
• Chilling or congealing; waxes, polymers, carbohydrates,..
• Provision for product cooling for very temperature sensitive or low glass transition temperature products.
• Touch screen PC control with real-time trending and excel data reporting.
• Critical process data such as temperatures, pressures, and liquid/gas flows are handled by the control unit.
• Nitrogen recirculation system for oxygen sensitive materials, environmental requirements or drying of high quantities of organic solvents.
• Flexible isolator for OEB4 compounds.
• Fix isolator for low bioburden.
• Unit can be used for pre-clincal and clinical applications.

• Modified/ Controlled/ Sustained Release
• Stabilisation
• Solubility Enhancement
• Inhalation
• Flowability
• Reconstitution
• Taste Masking
• Encapsulation

• Spray Drying
• Spray Chilling
