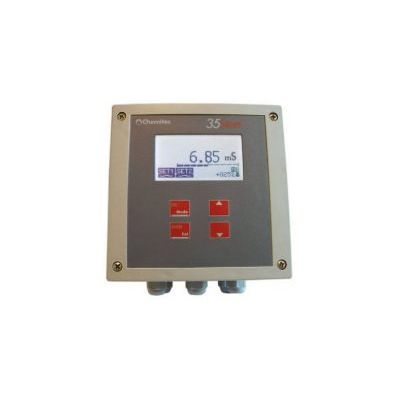

Chemitec - Model Serie 35 -Process Control Device
The Series 35 developed by Chemitec are devoted waters to the sectors of the treatment and of the industry and it allows the measure of the following parameters pH/ORP, Dissolved Oxygen, Conductivity, Chlorine, Chlorine Dioxode, Ozone.
Most popular related searches
1 analogue output
- Programmable for measurement.
- The limits of the outputs are freely programmable within the measuring range.
4 digital outputs
- 4ON/OFF set point: programming the operating range (hysteresis/direction) and start/stop time 000 to 999 seconds.
Alarm
- Programmable for: tool faults, minimum, maximum, set point delay, stay time (live check).
- Delay time: 00:00 to 59:99 mm:ss with a minimum interval of 15 sec.
- Stay time 00:00 to 99:99 hh:mm
- Set point deactivation (in case of alarm):
- Enabling/Disabling.
Washing electrodes
- Programming the interval (minimum 15 min) and the duration.
- During washing, all the analogue and digital outputs are frozen.
Digital input
- To disable the doses.
RS485 serial port
- For set-up and remote real time acquisition.
Manual controls
- Possibility to simulate the analogue and digital outputs from the keypad.
Temperature compensation
- Using PT100 sensor with 3 or 4 wires, or PT 1000.
