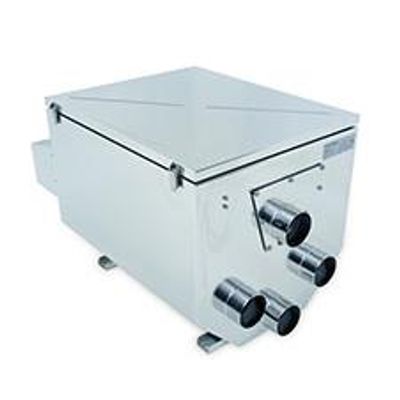

New Aqua - Model D511 - Process Filters

New Aqua - Model D511 -Process Filters

Fromnew aqua GmbH

SHARE

Process Filters D511 is a top-class mechanical filter. A modern and complete filter system can be assembled with optional accessories such as the base frame and bio-chamber. The flow rate is largely dependent on the screen size and the degree of water contamination. Flow rate max. 30.000l/h, Filter Panel 60µm, pollution load TSS 10mg/l.

Most popular related searches

high-pressure pump

water contamination

water flow rate

water flow rating

total suspended particulate solids

Material: stainless steel 1.4301
Dimensions LxWxH: approx 1.060 x 650 x 680mm
Flow rate: max. 30.000l/h with TSS 10mg/l
Filter cloth: 4x filter panels 60µm
Inlet: 3x DN100 / 110mm
Outlet: DN200 / 200mm
Waste water: DN100 / 110mm
Weight: approx 90kg
Installation variant: optionally gravity or pumped
Height over water: approx 195mm (gravity)

Technical Data – Control System

Control system: new aqua Control C1000
Dimensions WxHxD: approx 330 x 260 x 145mm
Supply voltage: 230 VAC

Technical Data – Gear motor

Manufacturer: Getriebebau NORD
Power: 0,12 kW
Supply voltage: 230 VAC

Technical Data – High-Pressure Pump

Manufacturer: EBARA
Connection: 1″ / PVC 32mm
Supply voltage: 230 VAC
