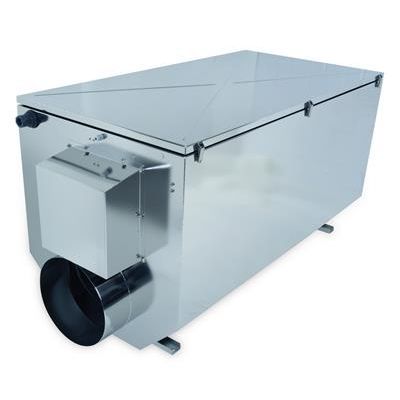

New Aqua - Model D830 -Process Filters

SHARE

Process Filters D830 is a top-class mechanical filter. The flow rate is largely dependent on the screen size and the degree of contamination of the water. Flow rate max. 180.000l/h, Filter Panel 60µm, pollution load TSS 10mg/l.

Most popular related searches
water flow rate
water flow rating
high-pressure pump
control cabinet
filter cloth
cloth filter
panel filter
total suspended particulate solids
gravity data
TSS load
  • Material: stainless steel 1.4301
  • Dimensions LxWxH: approx 2.080 x 910 x 990mm
  • Flow rate: max. 180.000l/h with TSS 10mg/l
  • Filter cloth: 18x filter panel 60µm
  • Inlet: DN400 / 400mm
  • Outlet: DN400 / 400m
  • Waste water: DN100 / 110mm
  • Weight: approx 233kg
  • Installation variant: gravity or pumped
  • Height over water: approx 240mm (gravity)

Technical Data – Control Cabinet

  • Control system: new aqua Control C1000
  • Dimensions WxHxD: approx 330 x 260 x 145mm
  • Supply voltage: 380-400 VAC

Technical Data – Gear motor

  • Manufacturer: Getriebebau NORD
  • Power: 0,18 kW
  • Supply voltage: 380-400 VAC

Technical Data – High-Pressure Pump

  • Manufacturer: EBARA
  • Connection: 1 1/4″ female thread
  • Supply voltage: 380-400 VAC
