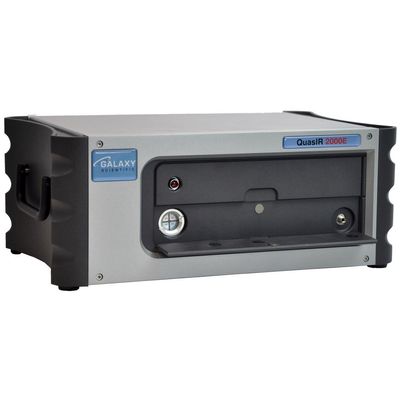

Galaxy Scientific QuasIR - Model 2000E -Process FT-NIR Spectrometer Analyzer
Galaxy Scientific’s QuasIR 2000E process FT-NIR analyzer is designed for continuous measurement of the chemical composition of material transported on a conveyor belt, through a pipe, or in a chute. Our unique external projection optics use high powered tungsten lamps to illuminate the sample from as far as 30 inches away and collect the scattered reflection off the sample through a fiber optic cable. The analysis spot size can be set as small as 3″ or as large as 6″ in diameter and can be custom tailored to applications needs.
The QuasIR™ 2000E process analyzer uses FT-NIR technology to deliver the most repeatable and accurate real-time results. Our rugged PermAlign™ interferometer optics deliver results in environments where other interferometers fail. Full compatibility with popular process control and chemometric software means the QuasIR™ 2000E process Near Infrared analyzer can be integrated into almost any process environment.
Key applications include mining, food production, recycling, web processing, in-process quality control, and much more. Gain real-time insight into mixing, drying, curing, baking, polymerization, and in-process concentrations. Monitor processes for critical quality parameters.
- Compact, portable, and high-performance FT-NIR spectrometer with measuring head to be installed in process
- Direct measurements of material moving over conveyors, pipelines, webs, hoppers, and chutes
- Large spot sampling – from 3″ to 6″; customizable to your application
- Working distance – from 18” to 30″ working distance Up to 200W of illumination
- Ruggedized enclosures available for outdoor, rough, or classified environments Customized alarms, inputs, and outputs to your needs
- Customized alarms, inputs, and outputs to your needs
- Continuous measurement of multiple parameters simultaneously
- PermAlign™ optics: an innovative optical design that maintains alignment and performance under extreme conditions
- Unmatched instrument-to-instrument consistency and direct method transfer so you can expand your QuasIR™ fleet with confidence
- Automatic Performance Testing Unit provides an easy and automated way to monitor your instruments performance
- Spectral Sage™ software suite combines the ease-of-use needed for everyday analysis with feature-rich functions for advanced method developers
- Low Cost of Ownership:
- 20,000-hour user replaceable NIR source
- > 10-year laser life
- > 10-year interferometer drive
- User replaceable desiccant
- Operated by standard Windows™ PC
Natural products, livestock, grains, flour milling, biofuels, corn & oilseed processing
Edible oils, meat, dairy, spices, snacks, alcoholic beverages, baked products, non-alcoholic beverages
Animal feed, feed ingredients, forages, pet food
Hydroxyl number, raw materials purity & confirmation, residual solvents analysis, additives, and monomers analysis
Drug manufacturing, raw materials ID, advanced ID, counterfeit drug screening
Whole leaf, cut tobacco, reconstituted tobacco and chewing tobacco
It is not feasible to list all the industries we serve. Aggregate, mining, and academia are amongst many others. If you are uncertain if our technology can meet your needs, please contact us to discuss the details of your application or to request a feasibility study.
Historically, transferring NIR calibrations from one instrument to another has been a challenging task. One of the greatest advantages of FT-NIR technology is direct calibration transfer. NIR calibration can easily be transferred from one FT-NIR instrument to another even if it is not the same model or made by the same manufacturer.
Galaxy Scientific’s high-performance FT-NIR technology offers significant advantages such as high spectral resolution, best-in-class signal-to-noise ratio, inherently stable wavelength accuracy, and full spectral range. All models utilize Galaxy’s PermAlign™ Fourier Transform Technology, taking near-infrared instrumentation to the next level by offering incredibly high-performance measurements in a small, portable design. Benefits include permanent interferometer alignment, small & lightweight design, and robust field operation

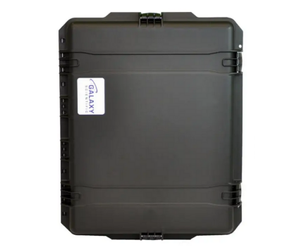

This compact design allows us to offer “depot service” meaning our products can be easily shipped via standard shipping methods, without the need for a freight shipment. A product can be overnighted to us, evaluated and repaired (if needed) upon receipt and then overnighted back to our customer. This is much cheaper and faster than having to send a specialist to the customer site…
Galaxy Scientific products are designed to be easily installed by the end user and without the need for an expensive on-site product start-up by our experts.

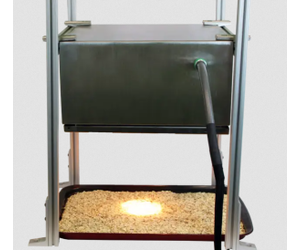

The QuasIR 2000E is equipped with a heavy-duty industrial measuring head for continuous measurements and monitoring of material moving over conveyors, pipelines, webs, hoppers, and chutes. Measuring area could be set to anywhere between 3 to 6 inches diameter for improved reproducibility and accuracy.
