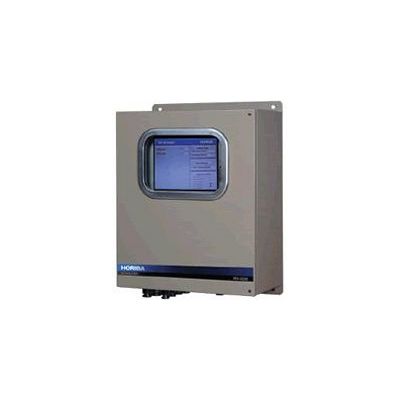

HORIBA - Model MU-2000 -Process Gas UV Spectroscopic Analyzer

The MU-2000 provides continuous measurement of up to five sample components. Two light sources, Xenon or Deuterium, are available depending on the wavelength band required by the application. The sample signal is transmitted via optical fibers to a holographic grating and diode array detector. Our sophisticated p-chemometrics algorithms allow simultaneous multiple component analysis over wide concentration ranges.

Featuring high reliability and great assurance, HORIBA`s comprehensive technology meets the needs of process gas monitoring in the next generation.

• Exceptional optical design
  Precise measurement with minimum interference of coexistent gas, Perform multi-component measurements quickly, simultaneously, and continuously.
• Easily expandable sampling technology
  HORIBA proprietary technology is provided comprehensively, from analyzers to whole systems.
• HORIBA Proprietary software
  HORIBA’s proprietary analysis method outputs measured values from multiple components. Operate using an easy-touch touch screen.
• Measure up to 5 components simultaneously and continuously
  By adopting ultraviolet spectroscopy, the MU-2000 performs continuous measurement of multi-components, not possible before using nondispersive ultraviolet absorption or gas chromatography.
