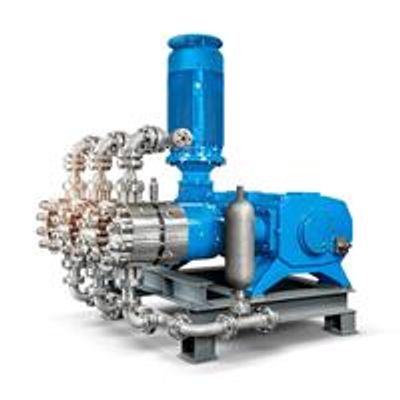

Lewa Triplex - Process Pumps for High-Pressure Processes
LEWA triplex are rugged process diaphragm pumps with the patented LEWA DPS diaphragm protection system. It is the right solution for high-pressure processes in all industries and for a wide variety of fluids. Thanks to the space-saving monoblock design, it is ideally suited for small installation spaces. The LEWA triplex achieves flow rates of up to 180 m³/h and discharge pressures of up to 1200 bar.
Compact, rugged, reliable.
Whether in the oil and gas industry, the chemical industry, the food industry or the energy sector, the LEWA triplex diaphragm process pump has been used everywhere in high-pressure applications.
The pump features tried-and-tested, patented LEWA diaphragm technology, absolutely secure and reliable operation and the world’s most compact design for a process pump. It also has the advantages of a long service life, minimal life cycle costs and high energy efficiency.
It is available in six different sizes, this allows its use in a wide assortment of processes and applications and lets it fulfill a wide range of requirements.
The LEWA triplex is a hydraulically actuated diaphragm process pump with a compact design that offers numerous advantages in relation to comparable pumps during high-pressure processes.
The LEWA triplex features a solid, durable and long-lasting overall design resulting from a one-piece crankcase and double bearing crankshaft. The space-saving monoblock design makes the triplex the world’s most compact process pump. This also makes it ideal for applications and processes with little installation space, such as oil drilling platforms.
The triplex series features very smooth running and a low-pulsation flow rate. The even phasing of pistons (eccentric offset) makes this possible. This means there is usually no need to install pulsation dampers in the pipeline system.
The unique suction capacity of the LEWA triplex diaphragm process pump distinguishes it from other pumps. With an absolute suction pressure of up to 0.1 bar, it provides more than just a wide array of safe installation options. The operating costs for the entire system can also be decreased compared to other pumps.
Starting up the process pump is safe, reliable and easy: When not operating, a spring fixes the diaphragm in a neutral position at all times. This ensures that the diaphragm is never damaged due to incorrect positioning when starting up.
For us, safety and reliability come first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms—not only when excess primary pressure is present, but also when the pressure or suction line is closed.
The triplex series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, application-specific configuration always gives you the correct diaphragm process pump.
Our patented sandwich diaphragm is not just extremely durable, it is also well-protected. The LEWA DPS diaphragm protection system and diaphragm monitoring system report any damage to the diaphragm before it tears and has a chance to contaminate the pumped fluid.
A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations in operation. This valve is individually adjustable and can therefore be adapted to different operating situations.
Our triplex pumps up to the G3R size feature an integrated reduction gear unit and a vertically attached flange motor to save space.
The triplex series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance.
Our pumps feature extremely low maintenance costs and a long service life. If regular maintenance intervals are maintained, our diaphragm pumps can operate up to 40 years.
LEWA process pumps achieve the highest efficiency of all pump technologies. Our triplex series also combines high efficiency with low energy consumption.
We comply with globally applicable standards such as VDMA 24284 and 24286-10 when designing our pumps.
Diaphragm pumps work without dynamic seals. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.
Customized valvesLEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.
Our pumps are equipped with all common connection geometries such as DIN standard, BASF`s high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.
If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.
LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.
Many LEWA pumps, systems and units can be cleaned (Cleaning in Place) and sterilized (Sterilization in Place). To carry this out, it is not necessary to disassemble the equipment.
Performance spectrum
With the combination of various pump heads and gear units, the LEWA triplex diaphragm process pump covers a wide performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.
- G3S 60 35000
- G3F 90 45000
- G3G 120 60000
- G3M 120 125000
- G3R 160 130000
- G3U 210 190000
- G3T 270 300000
