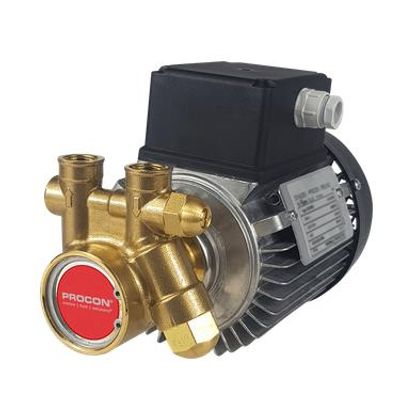

Procon - Model Series 1- 131A125F116D704 -Rotary Vane Pump/Motor Assembly
FromProcon US, Inc.
Rotary Vane Brass Pump/Motor Assembly Series 1- 125GPH (375LPH), EPDM/Nitrile, External adjust- with PSC Motor 230VAC, 50/60Hz, 0.25hp (187W).
Most popular related searches
rotary vane pump
total dissolved solids
relief valve
rotary pump
pressure relief valve
debris control
strainer
TDS
fluid pump
- Consistent flow rate across variable pressures
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Internal Relief Valve External adjust configuration
- Integral Strainer for debris removal from pumping fluid
- Brass Housing Material
- NPT 3/8" Inlet and Outlet Connections
- Constructed with EPDM/Nitrile Elastomers
- Flowrate of 125GPH (375LPH)*
- Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
- PSC Motor 230VAC, 50/60Hz, 0.25hp (187W)
Technical Information
- Agency Approvals Food grade Material - No Agency Approval (1.5% Max Lead)
- Material Brass
- Port Hole NPT 3/8"
- Integrated Strainer Yes
- Mounting Type Clamp-On
- Drive Configuration Double Flat
- Flowrate (GPH) 125GPH
- Flowrate (LPH) 375LPH
- Elastomer EPDM/Nitrile
- Seal Type Non Balances Ceramic/Carbon
- Rotation Clockwise
- Internal Component Material Carbon
- Valve Type Solid- Ultem
- ValveConfiguration External adjust
- Product Weight 12.03lb (5.46Kg)
Operating Range
- Maximum Operating Pressure 30psi
- Relief Valve Set Pressure Range 30 to 59psi (2 to 4 BAR)
- Max Static Pressure PSI 100psi
- Min Operation Fliud Temperature -4°F
- Max Operation Fluid Temperature 160°F
- Max Fluid Viscocity 100cP
- Max Sound Level 60dB(a)
- Max Discharge Pressure 250psi
- MinSpeed 1000RPM
- Max Speed 2400RPM
- Dry Suction Lift 3.3ft
- Wet Suction Lift 6.6ft
- Fluid Acidity 6pH
- Maximum Total Dissolved Solids (TDS) 5000ppm
Motor Performance
- Motor Design IMB3
- Motor Power 2 0.25
- Motor Voltage 230V
- Voltage 2 0.25
- Motor Power 187W
- Motor Mount Type Clamp-On
- Motor Speed 1 1320RPM
- Motor Speed 2 1620RPM
- Motor Current 1.7A
- Motor Current 2 2A
- Protection IP54
- Motor Insulation F
- Frequency 50/60Hz
- Phase Single Phase
- Motor Type PSC
- AC/DC AC
- Cooling Type External Fan Cooled
- Capacitor 8?F
- Poles 4
- Capacitor Voltage Rating 450VAC
