Steiel Elettronica S.r.l.

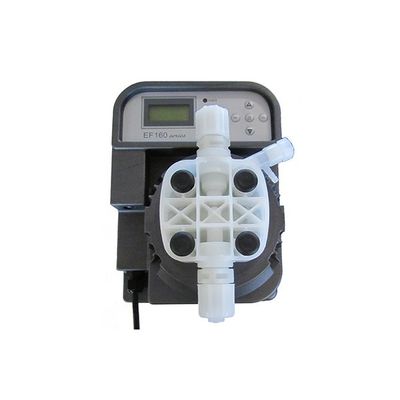

SteielModel EF160 EVO Series -Professional Electromagnetic Pumps

SHARE

Professional electromagnetic pumps with advanced digital electronics. Alphanumeric LCD with backlight. Multilingual interface. Digital inputs for external consent, level control, injection flow control (optional). Two configuration levels, standard and advanced. Dosage schedule at set hours and days (internal clock). Options upon request: pulse repetition function, serial port, relay / 4-20 mA output. Menu "Service". Restoring of factory settings with different codes, depending on pump model and configuration. Self-priming feature. Available models: multifunctional dosing pump (EF161 EVO), models with built-in pH/RX (EF162 EVO), chlorine (EF163 EVO) and conductivity (EF164 EVO) meter.

Most popular related searches
  • Two options for chlorine pump: EF163A EVO with input for CLE12 cell; EF163B EVO with input for CLE16 cell
  • Easy calibration and configuration, with data saving on no volatile memory
  • Pump magnet drived in ON/OFF or proportional mode, with compensation of the power voltage fluctuations
  • Alarms and errors shown on display
  • Three options of flow rate
  • PVDF (or PP) dosing head, Pyrex (or ceramic) ball valves, FPM (EPDM or PTFE) seals
  • Dosing head with self-bleeding option
  • Power supply: 230 V~
  • Prewired power cable with Schuko plug
  • Available housing colours: grey (standard), green or blue
