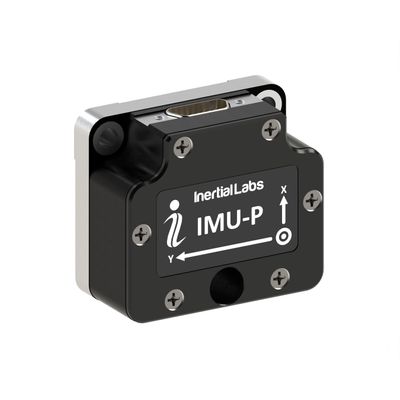

Inertial - Model IMU-P - Tactical-A -S and Industrial -Professional Inertial Measurement Unit

• ITAR free (ECCN 7A994 - No License Required)
• Designed for stabilization (S) and guidance (A)
• Affordable price

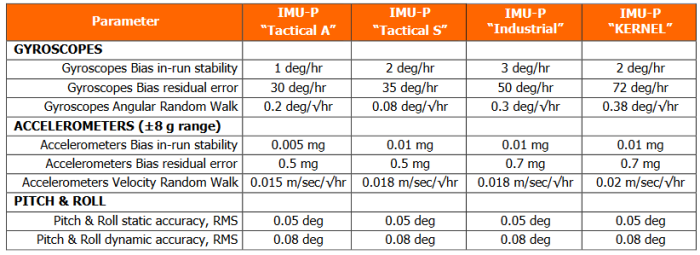

• 1 deg/hr Gyro Bias in-run stability
• 0.08 deg/√hr Angular Random Walk
• up to ±90 g accelerometers dynamic range
• 5 μg Accelerometers Bias in-run stability
• 0.015 m/s/√hr Velocity Random Walk
• 0.05 deg Pitch & Roll accuracy
• Optional input from external GNSS and INS data output

Fully calibrated, temperature compensated, mathematically aligned to an orthogonal coordinate system, IMU demonstrate less than 1 deg/hr gyroscopes and 0.005 mg accelerometers bias in- run stability with very low noise and high reliability.

Continuous Built-in Test (BIT), configurable communications protocols, electromagnetic interference (EMI) protection, and flexible input power requirements make the Inertial Labs IMU-P easy to use in a wide range of higher order integrated system applications.

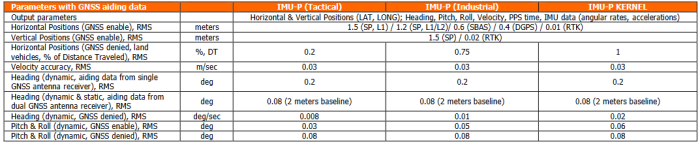

The Inertial Labs IMU-P models are able to get an aiding data from external source of GNSS and then to output full spectrum of INS data (Positions, Attitude, Velocity and Time)

The Inertial Labs IMU-P was designed for applications, like:

• Antenna and Line of Sight Stabilization Systems
• Passengers trains acceleration / deceleration and jerking systems
• Motion Reference Units (MRU)
• Motion Control Sensors (MCS)
• Gimbals, EOC/IR, platforms orientation and stabilization
• GPS-Aided Inertial Navigation Systems (INS)
• Attitude and Heading Reference Systems (AHRS)
• Land vehicles navigation and motion analysis
• Buoy or Racing Boat Motion Monitoring
• UAV & AUV/ROV navigation and control
